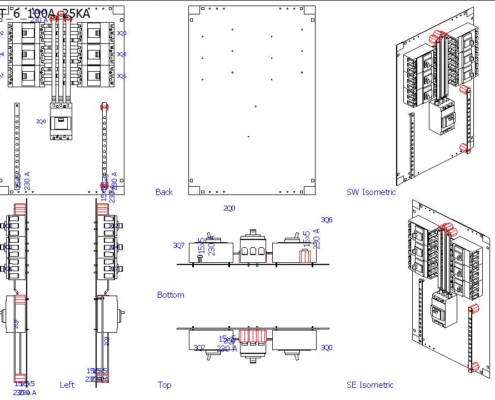

Standard Features:

Incomer up to 160A 3P 25KA Adjustable
6xFeeders up to100A 3P 25KA
Busbar 15×5

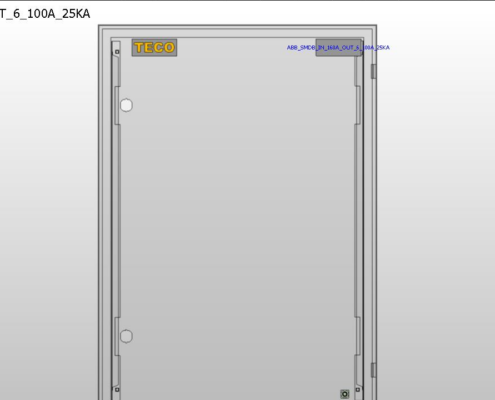

Suitable Enclosure IP55
For breakers <= 160A direct cable connection up to 35mm2 For breakers >= 200 busbar connection is fabricated for cable termination

Components List:

1 X ABB.1SDA067399R1: XT1C TMD 3P 160AT/160AF ADJUSTABLE
6 X ABB.1SDA068759R1: A1C 125 TMF 32-400 3p F F FIXED

———————————————
Approximate Weight: 32.04 KG
Approx Dimensions (WxHxD): 50x70x20 cm
———————————————
Current LME Price: 9957 USD/Ton
1 EURO = 1.07 USD
Last update date: 03/05/2024
———————————————
