Standard Features:

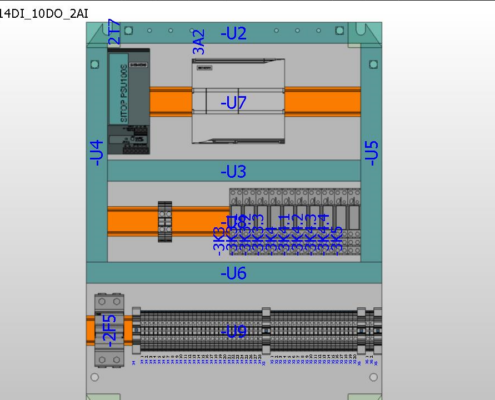

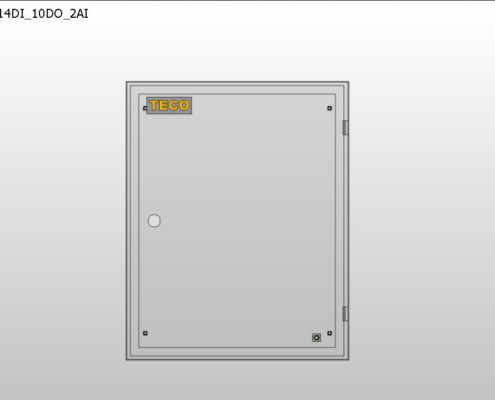

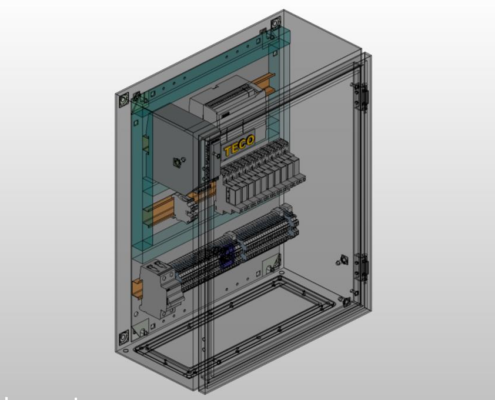

Typical Siemens PLC Panel 14DI/10DO/2AI completely assembled with plugin 24VDC interface relays 2CO on outputs.

Communication via ethernet port (On Board CPU) which is compatible with Profinet and Modbus Protocols out of the box.

PLC can be programmed via Siemens TIA Software.

Devices are numbered
Wires are colored and numbered
Terminals are numbered

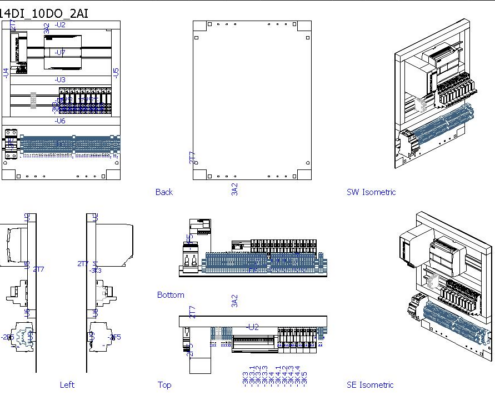

Wiring diagram will be handed over to purchaser.
Un-programmed and ready for programming by purchaser.
Input contacts are wired up to the terminal at the bottom.
Voltage Free Output contacts are wiried up the terminal at the bottom.
Analog Inputs are wired up to the terminal at the bottom.
Incomer 6A 2P.
Power Supply Siemens Sitop 24VDC 5A.

CPU Specifications:
SIMATIC S7-1200, CPU 1214C, compact CPU, DC/DC/DC, onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC; 2 AI 0-10 V DC, Power supply: DC 20.4-28.8V DC, Program/data memory 100 KB

Power Supply Specifications:
SITOP PSU100S 24 V/5 A Stabilized power supply input: 120/230 V AC, output: 24 V DC/5

Item can be controlled and monitored via TSS Software (Supplied by us) Please visit https://tecogrp.com/tss for more information.

Description from Siemens Website:

Overview
SIMATIC S7-1200 Controllers are the intelligent choice for compact automation solutions with integrated IOs, communication functions and technology functions for automation tasks in the lower to middle performance range. They are available in standard and fail-safe versions.

The scalable SIMATIC S7-1200 Controllers have integrated inputs and outputs as well as communication options and allow modular expansion. Digital and analog input and output modules as well as different communications and special modules enable flexible adaptation to the relevant automation task.

Benefits
Efficient engineering

The seamless integration of SIMATIC Controllers into the common TIA Portal engineering framework permits the integrated storage of data, the smart library concept, and a uniform operating philosophy. This makes the use of universal functions particularly easy.
Variety of diagnostic options

An efficient error analysis and fast error localization with the new uniform display concept – plain text information on the error message in TIA Portal, on the HMI, and in the web server – shortens commissioning times and minimizes production downtimes. SIMATIC S7-1200 offers you a diagnostic functionality that is already integrated in the system, without the need for any further programming.
Innovative design

The SIMATIC S7-1200 Basic Controller can be perfectly adapted to the automation task at hand thanks to its comprehensive expansion options. The modular board concept permits an easy expansion of the controller without changing the physical size. Device replacement is simple, without rewiring through terminal strips.
Safety Integrated

Fail-safe automation is as easy to program as standard automation, and PROFIsafe devices are connected via PROFINET.
Technology Integrated

Simple Motion Control applications, fast counting and measuring tasks, as well as closed-loop control systems (PID) are integrated and can be implemented without additional expansion boards.
Security Integrated

Secured communication, know-how protection, copy protection and access protection prevent manipulation, opening and duplication of blocks by unauthorized persons, and thus protect your algorithm or process.

Application
With the integrated technology functions such as High Speed Counter, pulse width modulation, pulse sequence outputs, speed control and positioning, SIMATIC S7-1200
Controllers are suitable for temperature controls, pump and fan controls, as well as conveyor technology including packaging machines.

Design
Modules

The SIMATIC S7-1200 family consists of the following modules:

Compact controllers with graded performances in different variants as wide-range AC or DC controllers.
Signal boards (analog and digital) for low-cost modular controller expansion directly on the CPU, with retention of the mounting space.
Different digital and analog signal modules.
Different communications modules and processors.
Ethernet switch with 4 ports for implementation of many different network topologies
SIWAREX weighing systems connection module
Condition Monitoring module for early detection of mechanical damage to drive trains
PS 1207 stabilized power supplies, line voltage 115/230 V AC, rated voltage 24 V DC
Mechanical features

Easy mounting of the modules on a standard DIN rail or in a control panel
Rugged, compact plastic enclosure
Easily accessible connection and control elements, protected by front flaps
Removable connection terminals, also for analog or digital expansion modules
Device features

The SIMATIC S7-1200 complies with the following national and international standards:

UL 508
CSA C22.2 No. 142
FM Class I, Div. 2, Groups A, B, C, D; T4A Class I, Zone 2, IIC, T4
VDE 0160
EN 61131-2
Requirements of the EMC directive in accordance with EN 50081-1, 50081-2 and 50082-2
Communication
The SIMATIC S7-1200 is equipped with a variety of communication mechanisms:

Integrated PROFINET IO Controller interface
Communications module with PROFIBUS DP master interface
Communications module with PROFIBUS DP slave interface
GPRS module for connection to GSM/G mobile networks
LTE module for communication in mobile networks of the 4th generation (long term evolution)
Communications processor for connection to TeleControl Server Basic control center software control center software via Ethernet, and for safe communication via IP-based networks
Communications processor for connection to control centers for telecontrol applications
RF120C for connection to SIMATIC Ident systems
Module SM1278 for connecting IO-Link sensors and actuators
Point-to-point connection via communications modules or Communication Boards.
Point-to-point interface, freely-programmable interface mode

Communications modules permit communication via point-to-point connections. The RS232 and RS485 physical transmission media are used. Data transmission is carried out in the “Freeport” mode of the CPU. A user-specific, bit-oriented communication protocol is used (e.g. ASCII protocol, USS, or Modbus).

Point-to-point connection via CM 1241 in programmable interface mode

PROFINET interface

The integral PROFINET interface permits communication with:

Programming device

Connection of PG and SIMATIC S7-1200 CPU

HMI devices

Connection of Basic Panel and SIMATIC S7-1200-CPU

Other SIMATIC Controllers

Connection of several devices via CSM 1277 Ethernet switch

PROFINET IO automation components
The following protocols are supported:

TCP/IP
ISO-on-TCP
S7 communication

Function
The SIMATIC S7-1200 Controller is characterized by:

Easy getting started:
Special starter packages including simulators and documentation facilitate familiarization.
Uncomplicated operation:
Powerful standard commands which are simple to use, together with the user-friendly programming software, reduce the programming overhead to a minimum.
Real-time properties:
Special interrupt functions, fast counters, and pulse outputs permit use even with time-critical processes.

Technical specifications
General technical specifications

Degree of protection

IP20 acc. to IEC 529

Ambient temperature

Operation
(95% humidity)

Horizontal installation
-20 … +60 °C

Vertical installation
-20 … +50 °C

Transportation and storage
-40 … +70 °C

With 95% humidity
25 … 55 °C

Insulation

5/24 V DC circuits
500 V AC test voltage

115/230 V AC circuits to ground
1500 V AC test voltage

115/230 V AC circuits to 115/230 V AC circuits
1500 V AC test voltage

230 V AC circuits to 5/24 V DC circuits
1500 V AC test voltage

115 V AC circuits to 5/24 V DC circuits
1500 V AC test voltage

Electromagnetic compatibility

Requirements of the EMC directive

Noise immunity acc. to
EN 50082-2
Test acc. to:
IEC 801-2, IEC 801-3, IEC 801-4, EN 50141, EN 50204, IEC 801-5, VDE 0160

Emitted interference acc. to EN 50081-1 and
EN 50081-2
Test according to
EN 55011, Class A,
Group 1

Mechanical strength

Vibrations, test acc. to / tested with
IEC 68, Part 2-6:
10 … 57 Hz;
constant amplitude
0.3 mm;
58 … 150 Hz;
constant acceleration 1 g (mounted on DIN rail) or
2 g (mounted in switchboard);
mode of vibration:
frequency sweeps with a sweep rate of 1 octave/minute;
duration of vibration:
10 frequency sweeps per axis in each direction of the three mutually perpendicular axes

Shocks, test acc. to / tested with
IEC 68, Part 2-27/half-sine:
magnitude of shock 15 g (peak value), duration 11 ms, 6 shocks in each of the three mutually perpendicular axes

Components List:

1 X SIE.6ES7214-1AG40-0XB0: CPU 1214C, DC/DC/DC, 14DI/10DO/2AI
1 X SIE.6EP1333-2BA20: SITOP PSU100S
1 X ABB.2CDS212001R0064: Miniature Circuit Breaker – 2P – C – 6 A

———————————————
Approximate Weight: 21.18 KG
Approx Dimensions (WxHxD): 40x50x20 cm
———————————————
Current LME Price: 8342 USD/Ton
1 EURO = 1.09 USD
Last update date: 28/06/2023
———————————————
