Description

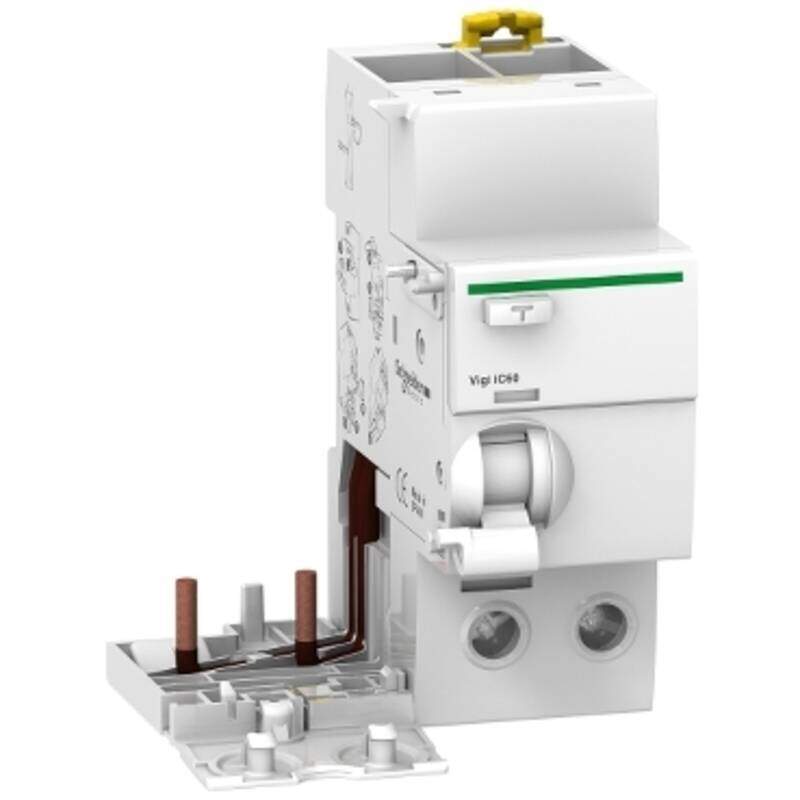

Vigi iC60 – earth leakage add-on block – 2P – 63A – 300mA – AC type
SKU: A9V44263
Range: Acti9
Product or component type: Add-on residual current devices
Device short name: Vigi iC60
Poles description: 2P
[In] rated current: 63 A
Network type: AC
Earth-leakage sensitivity: 300 mA
Earth-leakage protection time delay: Instantaneous
Earth-leakage protection class: Type AC
Rated breaking and making capacity: Im = 1500 A, Idm = 1500 A
Rated conditional short-circuit current: With iC60N: 6000 A, With iC60H: 10000 A, With iC60L: 15 kA
[Ue] rated operational voltage: 230…415 V AC 50/60 Hz
[Ui] rated insulation voltage: 500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage: 6 kV
9 mm pitches: 5
Height: 9.1 cm
Width: 4.5 cm
Depth: 7.35 cm
Net weight: 0.165 kg
Colour: White
Standards: EN/IEC 61009-1, EN/IEC 61009-2-1
IP degree of protection: IP20
Pollution degree: 3
Tropicalisation: 2
Relative humidity: 95 % at 55 °C
Operating altitude: 0…2000 m
Ambient air temperature for operation: -5…60 °C
Ambient air temperature for storage: -40…85 °C
Packing Units
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Weight: 0.162 kg
Package 1 Height: 8.5 cm
Package 1 width: 8.6 cm
Package 1 Length: 10.5 cm
Unit Type of Package 2: S03
Number of Units in Package 2: 27
Package 2 Weight: 4.81 kg
Package 2 Height: 30 cm
Package 2 width: 30 cm
Package 2 Length: 40 cm
