Description

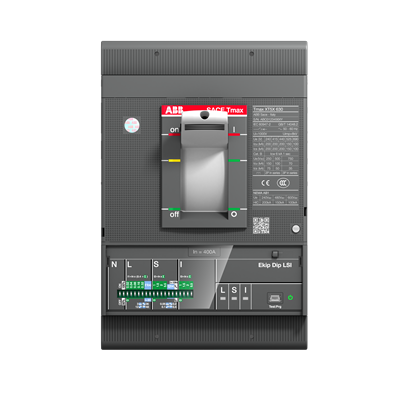

XT5S 630 Ekip Dip LS/I In=630 3p F F
Extended Product Type: XT5S 630 Ekip Dip LS/I In=630 3p F F
Product ID: 1SDA100425R1
EAN: 8056221005029
Catalog Description: XT5S 630 Ekip Dip LS/I In=630 3p F F
Long Description: C.BREAKER TMAX XT5S 630 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP LS/I R 630
ABB EcoSolutions: Yes
ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
Recyclability Rate of the Product acc. to EN45555: 61.8 %
RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Order Code US and Canada: XT5SE363BEFF000XXX
E-Number (Finland): 3641346
E-Number (Norway): 4380276
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362090
Dimensions (cm): Width: 14, Height: 20.5, Depth: 10.35
Product Net Weight (kg): 4.82
Package Level 1 (box, 1 piece) dimensions (cm): Width: 25, Height: 24.5, Depth: 28.5
Package Level 1 Gross Weight (kg): 5.308
Circuit Breaker Type to be Associated: Power Distribution
Product Main Type: SACE Tmax XT
Product Name: Moulded Case Circuit Breaker
Product Type: Automatic Circuit Breaker
Version: F
Current Type: AC
Electrical Durability: 5000 cycle at 60 cycles per hour
Mechanical Durability: 20000 cycle at 120 cycles per hour
Number of Poles: 3
Order Multiple: 1 piece
Power Loss: 45 W
Rated Current (In): 630 A
Rated Impulse Withstand Voltage (Uimp): 8 kV
Rated Insulation Voltage (Ui): 1000 V
Rated Operational Voltage: 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics): At 220-240 V AC 85 kA, 380-440 V AC 50 kA, 500-525 V AC 30 kA, 690 V AC 25 kA
Rated Short-time Withstand Current Low Voltage (Icw): 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): At 220-240 V AC 85 kA, 380-440 V AC 50 kA, 500-525 V AC 30 kA, 690 V AC 25 kA
Rated Uninterrupted Current (Iu): 630 A
Release: Ekip Dip LS/I
Release Type: EL
Short-Circuit Performance Level: S
Standards: IEC60947-2
Sub-type: XT5
Terminal Connection Type: Front
