Description
General Information
Extended Product Type: ZA185
Product ID: 1SFN154710R8106
EAN: 7320500207536

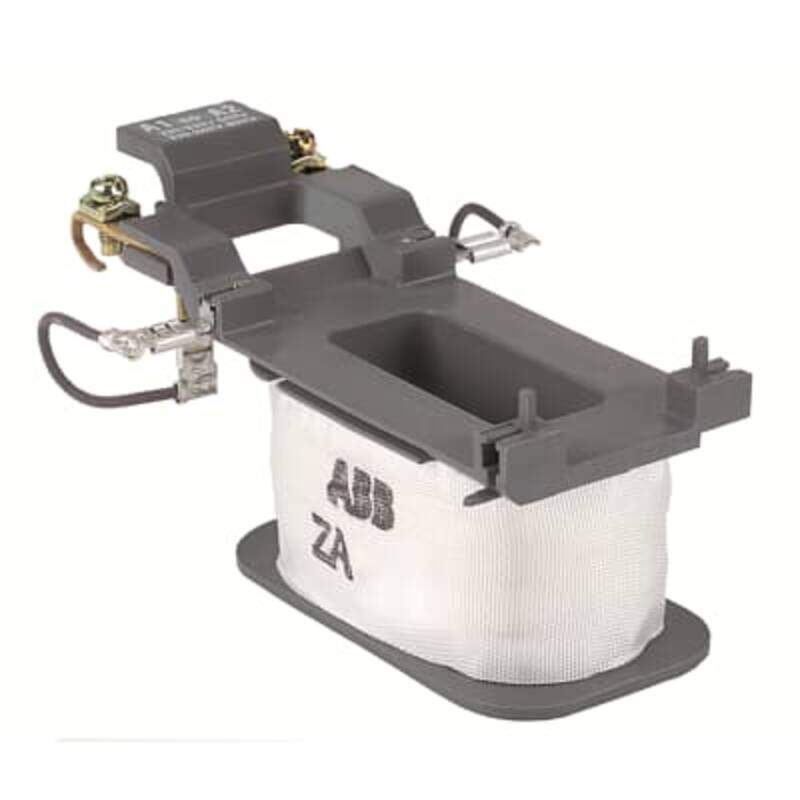

Catalog Description: ZA185 24V 50Hz Operating Coil
Long Description: a.c. operated contactor coil
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85045095
Dimensions
Product Net Width: 105 mm
Product Net Depth / Length: 40 mm
Product Net Height: 55 mm
Product Net Weight: 0.18 kg
Technical
Rated Control Circuit Voltage (Uc): 50 Hz 380 V
60 Hz 380 … 415 V
Terminal Type: Screw Terminals
Suitable For: A145
A185
Suitable for Product Class: Block Contactors
Product Name: Operating Coil
Container Information
Package Level 1 Units: box 1 piece
Package Level 1 Width: 160 mm
Package Level 1 Depth / Length: 60 mm
Package Level 1 Height: 97 mm
Package Level 1 Gross Weight: 0.23 kg
Package Level 1 EAN: 7320500207536
External Classifications and Standards
Object Classification Code: M
ETIM 7: EC002498 – Accessories for low-voltage switch technology
ETIM 8: EC002498 – Accessories/spare parts for low-voltage switch technology
UNSPSC: 39121529
E-Number (Norway): 4120981
