Description
General Information
Extended Product Type: ZA75 110V 50Hz / 110-120V 60Hz
Product ID: 1SBN153510R8406
EAN: 3471522118844
Catalog Description: ZA75 110V 50Hz / 110-120V 60Hz Coil

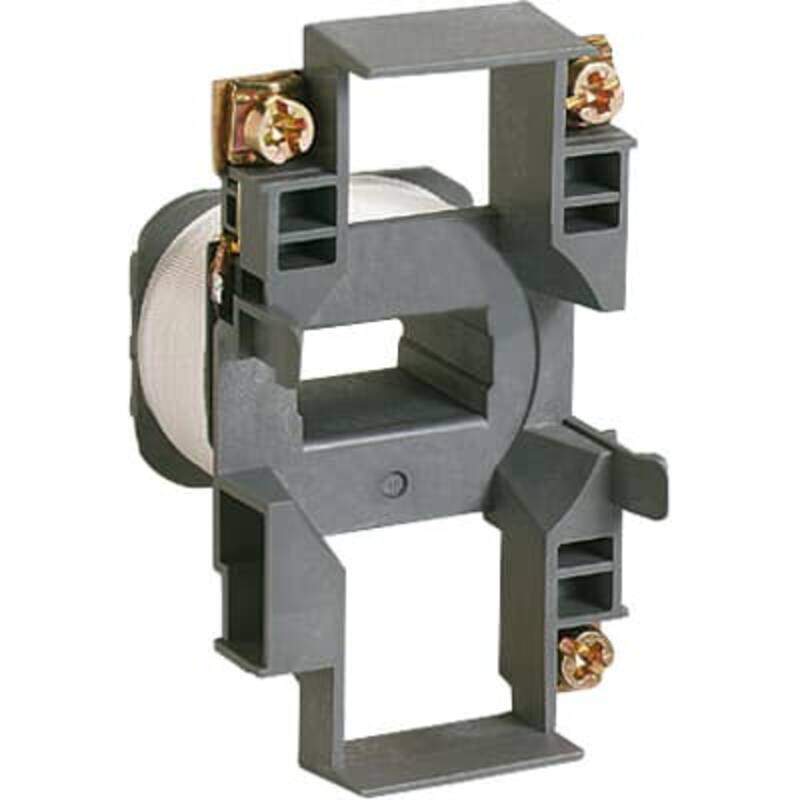

Long Description: ZA75 is a coil spare part for A45 …A75 contactor serie with screw terminals and a rated control circuit voltage 110V 50Hz / 110-120V 60Hz
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85389099
Dimensions
Product Net Width: 45 mm
Product Net Depth / Length: 72 mm
Product Net Height: 111 mm
Product Net Weight: 0.166 kg
Technical
Rated Frequency (f): Control Circuit 50 / 60 Hz
Rated Control Circuit Voltage (Uc): 50 Hz 110 V
60 Hz 110 … 120 V
Terminal Type: Screw Terminals
Suitable For: A45, A50, A63, A75, GA75, UA50, UA63, UA75, UA50RA, UA63RA, UA75RA
Product Name: Coil
Material Compliance
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Container Information
Package Level 1 Units: box 1 piece
Package Level 1 Width: 75 mm
Package Level 1 Depth / Length: 115 mm
Package Level 1 Height: 50 mm
Package Level 1 Gross Weight: 0.166 kg
Package Level 1 EAN: 3471522118844
External Classifications and Standards
ETIM 7: EC002498 – Accessories for low-voltage switch technology
ETIM 8: EC002498 – Accessories/spare parts for low-voltage switch technology
ETIM 9: EC001043 – Coil for relay
eClass: V11.0 : 27371012
UNSPSC: 39121010
IDEA Granular Category Code (IGCC): 4144 >> Coil for low-voltage
