Block Contactor

Block Contactor

د.إ809.79

AF96-30-00-13 100-250V50/60HZ-DC Contactor

Datasheet

datasheet

1 in stock

SKU: 1SBL407001R1300 Category: Brand:

Description

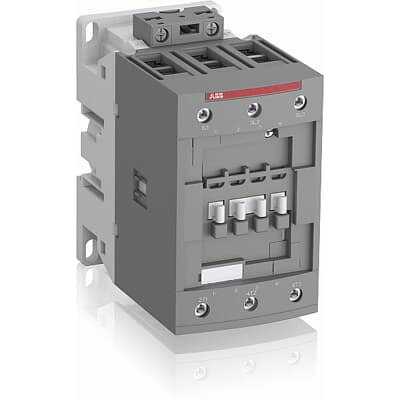

AF96-30-00-13 Block Contactor by ABB

The AF96-30-00-13 is a 3 pole contactor with screw terminals, suitable for controlling motors up to 45 kW at 400 V AC (AC-3) or 45.42 kW at 480 V UL and switching power circuits up to 130 A (AC-1) or 115 A UL general use. It operates at a wide control voltage range of 100-250 V 50/60 Hz and DC, managing large control voltage variations to reduce panel energy consumption and ensures reliable operation in unstable networks. Surge protection is integrated in a compact block type design. It can be extended with add-on auxiliary contact blocks and a variety of accessories.

Dimensions (cm): Width: 7, Depth/Length: 11.6, Height: 12.55

Weight: 1.17 kg

Electrical ratings and operational characteristics:

Rated operational voltage: main circuit 1000 V IEC or 600 V UL. Control frequency: 50 / 60 Hz. Conventional free-air thermal current Ith at 40 °C: 130 A.

Rated operational current AC-1 (690 V): 130 A at 40 °C, 105 A at 60 °C, 90 A at 70 °C.

Rated operational current AC-3 (415-690 V): ranges from 30 to 105 A depending on voltage and temperature.

Rated operational power AC-3 (415-690 V): up to 55 kW. Rated operational power AC-3e up to 55 kW.

Maximum breaking capacity: 1150 A at 440 V, 750 A at 690 V.

Rated insulation voltage: 1000 V IEC, 600 V UL. Rated impulse withstand voltage: 8 kV.

Electrical switching frequency up to 1200 cycles per hour (AC-3), mechanical switching frequency up to 3600 cycles per hour.

Control circuit voltage rating: 100 to 250 V at 50/60 Hz and DC. Coil consumption approximately 4 V·A at AC, 2 W at DC.

Mounting on TH35-15 DIN rail or by 2 diagonal screws (M4 or M6).

Connection capacities main circuit up to 70 mm² rigid stranded wire, control circuit flexible ferrule up to 2.5 mm². Wire stripping lengths: 10 mm control circuit, 17 mm main circuit.

Degree of protection IP20 for coil terminals, IP10 for main terminals.

Operating temperature range -40 to 70 °C fitting thermal overload relay, storage -60 to 80 °C. Maximum altitude without derating 3000 m.

Compliance to IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40, UL 60947-1, UL 60947-4-1, CSA standards.

Customs Tariff Code: 85364900.

Post Views: 3,713

Additional information

Weight1.17 kg
Dimensions11.6 × 7 × 12.55 cm
Product ID

1SBL407001R1300

Number of Main Contacts NO

3

Number of Main Contacts NC

0

Number of Auxiliary Contacts NC

0

Number of Auxiliary Contacts NO

0

Number of Poles

3P

Standards

IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, Main Terminals IP10

Terminal Type

Screw Terminals

Minimum Order Quantity

1 piece

Coil Consumption

Average Holding Value 50 / 60 Hz 4 V·A, Average Holding Value DC 2 W, Average Holding Value from Warm State 2 W

Mounting on DIN Rail

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

Mounting by Screws

2 x M4 or 2 x M6 Screws Placed Diagonally

Recommended Screw Driver

Pozidriv PZ

Rated Frequency Hz

Control Circuit 50 / 60 Hz

Rated Operational Current AC 1 A

{
"690V_40C": 130,
"690V_60C": 105,
"690V_70C": 90
}

Rated Operational Current AC 3 A

{
"415V_60C": 96,
"440V_60C": 96,
"500V_60C": 80,
"690V_60C": 57,
"1000V_60C": 30,
"380_400V_60C": 105,
"220_230_240V_60C": 105
}

Rated Operational Current AC 3e A

{
"415V_60C": 96,
"440V_60C": 96,
"500V_60C": 80,
"690V_60C": 57,
"380_400V_60C": 105,
"220_230_240V_60C": 105
}

Rated Operational Current DC 1 A

{
"110V_2_Poles_Series_40C": 130,
"110V_2_Poles_Series_60C": 105,
"110V_2_Poles_Series_70C": 90,
"110V_3_Poles_Series_40C": 130,
"110V_3_Poles_Series_60C": 105,
"110V_3_Poles_Series_70C": 90,
"220V_3_Poles_Series_40C": 125,
"220V_3_Poles_Series_60C": 105,
"220V_3_Poles_Series_70C": 90,
"72V_1_Pole_40C": 130,
"72V_1_Pole_60C": 105,
"72V_1_Pole_70C": 90,
"72V_2_Poles_Series_40C": 130,
"72V_2_Poles_Series_60C": 105,
"72V_2_Poles_Series_70C": 90,
"72V_3_Poles_Series_40C": 130,
"72V_3_Poles_Series_60C": 105,
"72V_3_Poles_Series_70C": 90
}

Rated Operational Current DC 3 A

{
"110V_2_Poles_Series_40C": 130,
"110V_2_Poles_Series_60C": 105,
"110V_2_Poles_Series_70C": 90,
"110V_3_Poles_Series_40C": 130,
"110V_3_Poles_Series_60C": 105,
"110V_3_Poles_Series_70C": 90,
"220V_3_Poles_Series_40C": 130,
"220V_3_Poles_Series_60C": 105,
"220V_3_Poles_Series_70C": 90,
"72V_1_Pole_40C": 130,
"72V_1_Pole_60C": 105,
"72V_1_Pole_70C": 90,
"72V_2_Poles_Series_40C": 130,
"72V_2_Poles_Series_60C": 105,
"72V_2_Poles_Series_70C": 90,
"72V_3_Poles_Series_40C": 130,
"72V_3_Poles_Series_60C": 105,
"72V_3_Poles_Series_70C": 90
}

Rated Operational Current DC 5 A

{
"110V_2_Poles_Series_40C": 130,
"110V_2_Poles_Series_60C": 105,
"110V_2_Poles_Series_70C": 90,
"110V_3_Poles_Series_40C": 130,
"110V_3_Poles_Series_60C": 105,
"110V_3_Poles_Series_70C": 90,
"220V_3_Poles_Series_40C": 130,
"220V_3_Poles_Series_60C": 105,
"220V_3_Poles_Series_70C": 90,
"72V_1_Pole_40C": 130,
"72V_1_Pole_60C": 105,
"72V_1_Pole_70C": 90,
"72V_2_Poles_Series_40C": 130,
"72V_2_Poles_Series_60C": 105,
"72V_2_Poles_Series_70C": 90,
"72V_3_Poles_Series_40C": 130,
"72V_3_Poles_Series_60C": 105,
"72V_3_Poles_Series_70C": 90
}

Rated Operational Power AC 3 kW

{
"415V": 55,
"440V": 55,
"500V": 55,
"690V": 55,
"1000V": 40,
"380_400V": 55,
"220_230_240V": 30
}

Rated Operational Power AC 3e kW

{
"415V": 55,
"440V": 55,
"500V": 55,
"690V": 55,
"380_400V": 55,
"220_230_240V": 30
}

Rated Short time Withstand Current Low Voltage A

{
"10s": 840,
"15min": 140,
"1min": 300,
"1s": 1200,
"30s": 450
}

Maximum Breaking Capacity A

{
"440V": 1150,
"690V": 750
}

Rated Insulation Voltage V

acc. to IEC 60947-4-1 1000 V, acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage kV

8

Maximum Electrical Switching Frequency cycles per hour

{
"AC_1": 600,
"AC_2_AC_4": 150,
"AC_3": 1200
}

Maximum Mechanical Switching Frequency cycles per hour

3600

Power Loss W

{
"AC_1_per_Pole": 8.2,
"AC_3_per_Pole": 4.5
}

Operate Time ms

{
"Between_Coil_Deenergization_and_NC_Contact_Closing": "19 … 105",
"Between_Coil_Deenergization_and_NO_Contact_Opening": "17 … 100",
"Between_Coil_Energization_and_NC_Contact_Opening": "38 … 95",
"Between_Coil_Energization_and_NO_Contact_Closing": "42 … 100"
}

Connecting Capacity Main Circuit mm2

{
"Flexible_with_Ferrule": "1/2x 6 … 50",
"Flexible_with_Insulated_Ferrule": "1/2x 6 … 50",
"Rigid_Stranded_1x": "6 … 70",
"Rigid_Stranded_2x": "6 … 50"
}

Connecting Capacity Control Circuit mm2

{
"Flexible_with_Ferrule": "1/2x 0.75 … 2.5",
"Flexible_with_Insulated_Ferrule_1x": "0.75 … 2.5",
"Flexible_with_Insulated_Ferrule_2x": "0.75 … 1.5",
"Rigid_Solid": "1/2x 1 … 2.5",
"Rigid_Stranded": "1/2x 1 … 2.5"
}

Wire Stripping Length mm

{
"Control_Circuit": 10,
"Main_Circuit": 17
}

Tightening Torque Nm

{
"Control_Circuit": 1.2,
"Main_Circuit": 6
}

Extended Product Type

AF96-30-00-13

Customs Tariff Number

85364900

Rated Operational Voltage

Main Circuit 1000 V

Conventional Free air Thermal Current Ith A

130

Rated Control Circuit Voltage Uc V

50 Hz 100 … 250 V, 60 Hz 100 … 250 V, DC Operation 100 … 250 V

Maximum Operating Voltage UL CSA V

Main Circuit 600 V

General Use Rating UL CSA A

(600 V AC) 115 A

Horsepower Rating UL CSA hp

{
"120V_AC_Single_Phase": 7.5,
"200_to_208V_AC_Three_Phase": 30,
"220_to_240V_AC_Three_Phase": 40,
"240V_AC_Single_Phase": 20,
"440_to_480V_AC_Three_Phase": 75,
"550_to_600V_AC_Three_Phase": 75
}

Connecting Capacity Main Circuit UL CSA

Rigid Stranded 1/2x 6-1 AWG

Connecting Capacity Control Circuit UL CSA

Rigid Solid 1/2x 18-14 AWG, Rigid Stranded 1/2x 18-14 AWG

Tightening Torque UL CSA

{
"Control_Circuit_in_lb_in": 11,
"Main_Circuit_in_lb_in": 53
}

Full Load Amps Motor Use

{
"120V_AC_Single_Phase": 80,
"200_to_208V_AC_Three_Phase": 92,
"220_to_240V_AC_Three_Phase": 80,
"240V_AC_Single_Phase": 88,
"440_to_480V_AC_Three_Phase": 77,
"550_to_600V_AC_Three_Phase": 77
}

Ambient Air Temperature C

{
"Close_to_Contactor_Fitted_with_Thermal_O_L_Relay": "-40 … 70",
"Close_to_Contactor_without_Thermal_O_L_Relay": "-40 … 70",
"Close_to_Contactor_for_Storage": "-60 … 80"
}

Climatic Withstand

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude m

3000

Resistance to Shock g

{
"Closed_Shock_Direction_A": 25,
"Closed_Shock_Direction_B1": 25,
"Closed_Shock_Direction_B2": 15,
"Closed_Shock_Direction_C1": 25,
"Closed_Shock_Direction_C2": 25,
"Open_Shock_Direction_B1": 5
}

Resistance to Vibrations

3g Closed Position & 3g Open Position 5 … 300 Hz

Pollution Degree

3

Conflict Minerals Reporting Template URL

https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#

REACH Declaration URL

https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#

RoHS Declaration URL

https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#

RoHS Information

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Toxic Substances Control Act TSCA URL

https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#

WEEE B2C B2B

Business To Business

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

Yes

ABB Site Meeting Group Waste To Landfill Target

No non-hazardous waste is sent to a landfill

End Of Life Disassembling Instructions URL

https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#

Environmental Product Declaration URL

https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#

Improved Energy Efficiency for Customers

Product Efficiency – Product considered more energy-efficient compared to similar product on market or older products from the same line; Product requires less energy to operate compared to similar product on market or older products from the same line

Recyclability Rate of the Product acc EN45555

Design for Closing Resource Loops – Standard EN45555 – 91.9 %

Certificates

{
"A2L_Certificate_UL_URL": "https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#",
"ABS_Certificate_URL": "https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#",
"BV_Certificate_URL": "https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#",
"CB_Certificate_URL": "https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#",
"CCC_Certificate_URL": "https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#",
"Declaration_of_Conformity_CCC_URL": "https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#",
"Declaration_of_Conformity_CE_URL": "https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#",
"Declaration_of_Conformity_UKCA_URL": "https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#",
"DNV_Certificate_URL": "https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#",
"KC_Certificate_URL": "https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#",
"LR_Certificate_URL": "https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#",
"RINA_Certificate_URL": "https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#",
"RMRS_Certificate_URL": "https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#",
"UL_Certificate_URL": "https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#",
"UL_Listing_Card_URL": "https://new.abb.com/products/1SBL407001R1300/af96-30-00-13#"
}

Package Level 1 Units

box 1 piece

Package Level 1 Width cm

15

Package Level 1 Depth Length cm

15

Package Level 1 Height cm

10.3

Package Level 1 Gross Weight kg

1.29

Package Level 1 EAN

3471523133235

Object Classification Code

Q

ETIM 7

EC000066 – Power contactor, AC switching

ETIM 8

EC000066 – Power contactor, AC switching

ETIM 9

EC000066 – Power contactor, AC switching

eClass

V11.0 : 27371003

UNSPSC

39121529

IDEA Granular Category Code IGCC

4758 >> Iec Contactors

E Number Finland

3707137

E Number Sweden

3210057
