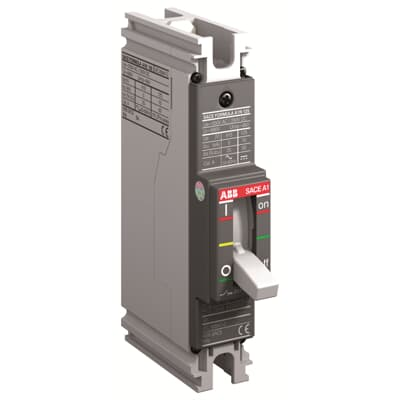

Product: A1N 125 TMF 20-400 1p F F
Product ID: 1SDA066686R1
Order Code US and Canada: AAN020TW-1
Description: C.BREAKER FORMULA A1N 125 FIXED SINGLE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 20-400 A
Type: Moulded Case Circuit Breaker (Automatic Circuit Breaker)
Main Type: SACE FORMULA
Version: F
Electrical Durability: 1500 cycles
Mechanical Durability: 8500 cycles
Poles: 1
Opening Time: 15 ms (CB with SOR and CB with UVR)
Power Loss per Pole: 3 W
Rated Current (In): 20 A
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): 690 V
Rated Operational Voltage: 415 V AC, 125 V DC
Service Short-Circuit Breaking Capacity (Ics): 12.5 kA (240 V AC), 2.5 kA (380 V AC), 1.25 kA (415 V AC)
Ultimate Short-Circuit Breaking Capacity (Icu): 25 kA (240 V AC), 5 kA (380 V AC), 5 kA (415 V AC), 10 kA (125 V DC)
Rated Uninterrupted Current (Iu): 125 A
Release: TMF
Release Type: TM
Short-Circuit Performance Level: N
Standards: IEC
Sub-type: A1
Terminal Connection Type: Front
Dimensions (Net): Width 2.54 cm, Height 13 cm, Depth 6 cm
Weight (Net): 0.25 kg
Package Level 1: 1 piece, Width 14.3 cm, Height 7.4 cm, Depth 9.3 cm, Gross Weight 0.3 kg
Customs Tariff Code: 85362090
