Description
General Information
Extended Product Type: BER16-4
Product ID: 1SBN081311R1000
EAN: 3471523130777
Catalog Description: BER16-4 Connection Set for Reversing Contactors

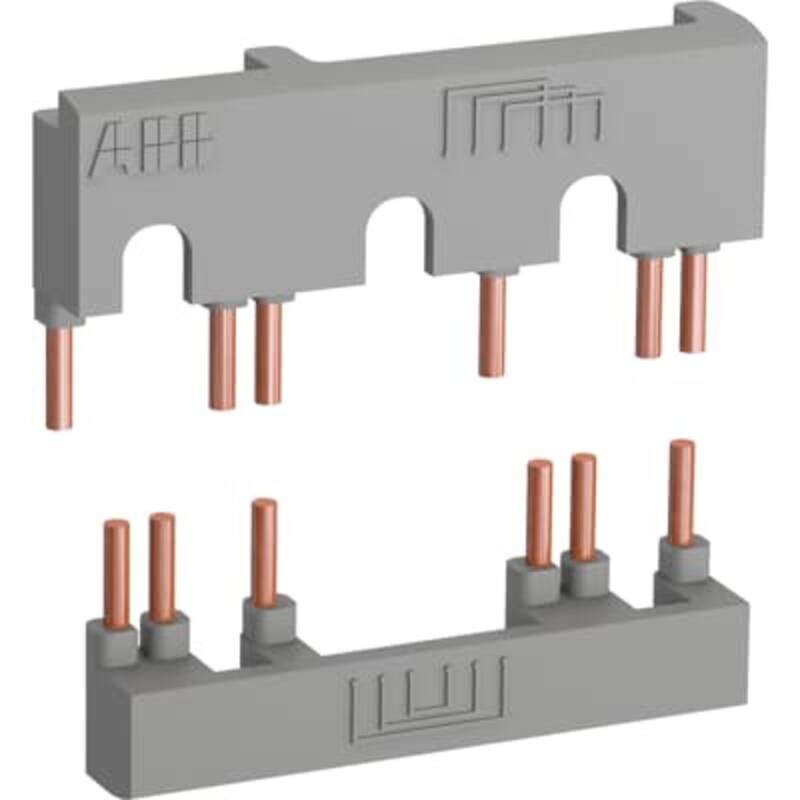

Long Description: BER16-4 is a connection set for reversing contactors used to easily connect the main poles of two 3-pole AF09..AF16, AFC09..AFC16 or AFS09..AFS16 contactors mounted side by side.nThe BER connection sets are made up of:n• 1 upstream and 1 downstream connectionsn• Insulated, solid copper bars
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85389099
Dimensions
Product Net Width: 72 mm
Product Net Depth / Length: 14.55 mm
Product Net Height: 33 mm
Product Net Weight: 0.045 kg
Technical
Standards: EN 60947-1, EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
Rated Operational Voltage: Main Circuit 690 V AC
Rated Frequency (f): Main Circuit 50 / 60 Hz
Terminal Type: Screw Terminals
Suitable For: AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AFC09, AFC12, AFC16, AFS09, AFS09Z, AFS12, AFS12Z, AFS16, AFS16Z, AF09B, AF09ZB, AF12B, AF12ZB, AF16B, AF16ZB
Product Name: Connection Set
Material Compliance
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Container Information
Package Level 1 Units: bag 1 piece
Package Level 1 Width: 120 mm
Package Level 1 Depth / Length: 150 mm
Package Level 1 Height: 15 mm
Package Level 1 Gross Weight: 0.045 kg
Package Level 1 EAN: 3471523130777
External Classifications and Standards
ETIM 7: EC002498 – Accessories for low-voltage switch technology
ETIM 8: EC002498 – Accessories/spare parts for low-voltage switch technology
ETIM 9: EC002498 – Accessories/spare parts for low-voltage switch technology
eClass: V11.0 : 27371392
UNSPSC: 39122221
IDEA Granular Category Code (IGCC): 5219 >> Switch part or accessory
E-Number (Finland): 3706558
E-Number (Sweden): 3211441
