Description
General Information
Extended Product Type: BER38-4
Product ID: 1SBN082311R1000
EAN: 3471523130784

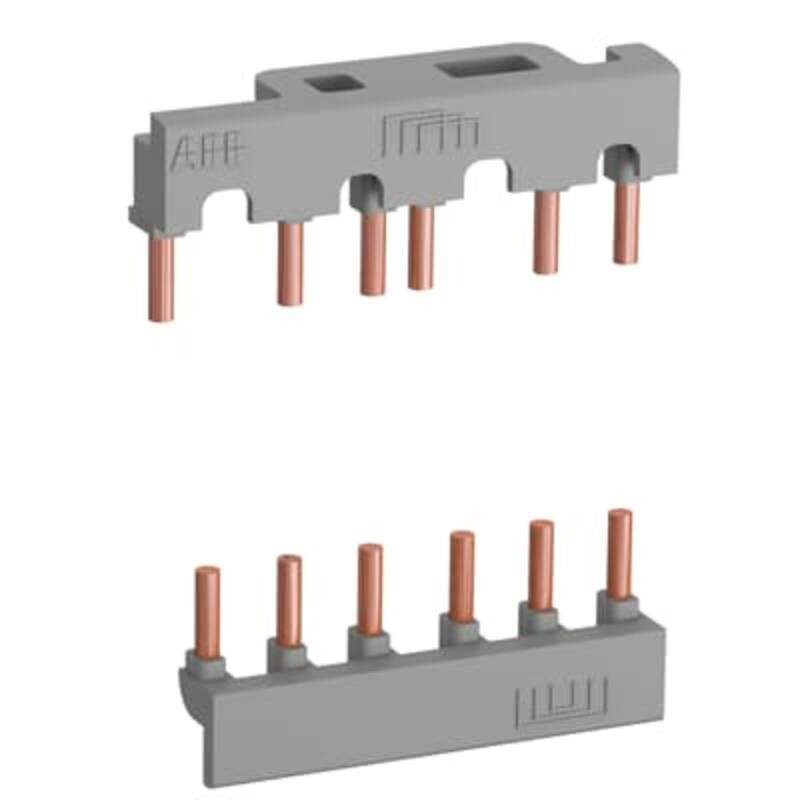

Catalog Description: BER38-4 Connection Set for Reversing Contactors
Long Description: BER38-4 is a connection set for reversing contactors used to easily connect the main poles of two 3-pole AF26..AF38, AFC26..AFC38 or AFS26..AFS38 contactors, mounted side by side.nThe BER connection sets are made up of:n• 1 upstream and 1 downstream connectionsn• Insulated, solid copper bars
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85389099
Dimensions
Product Net Width: 87.2 mm
Product Net Depth / Length: 23.05 mm
Product Net Height: 36.5 mm
Product Net Weight: 0.1 kg
Technical
Standards: EN 60947-1, EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
Rated Operational Voltage: Main Circuit 690 V AC
Rated Frequency (f): Main Circuit 50 / 60 Hz
Terminal Type: Screw Terminals
Suitable For: AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AFC26, AFC30, AFC38, AFS26, AFS26Z, AFS30, AFS30Z, AFS38, AFS38Z, AF26B, AF26ZB, AF30B, AF30ZB, AF38B, AF38ZB
Product Name: Connection Set
Container Information
Package Level 1 Units: bag 1 piece
Package Level 1 Width: 120 mm
Package Level 1 Depth / Length: 150 mm
Package Level 1 Height: 22 mm
Package Level 1 Gross Weight: 0.1 kg
Package Level 1 EAN: 3471523130784
External Classifications and Standards
ETIM 7: EC002498 – Accessories for low-voltage switch technology
ETIM 8: EC002498 – Accessories/spare parts for low-voltage switch technology
ETIM 9: EC002498 – Accessories/spare parts for low-voltage switch technology
eClass: V11.0 : 27371392
UNSPSC: 39122221
IDEA Granular Category Code (IGCC): 5219 >> Switch part or accessory
E-Number (Finland): 3706559
E-Number (Sweden): 3211442
