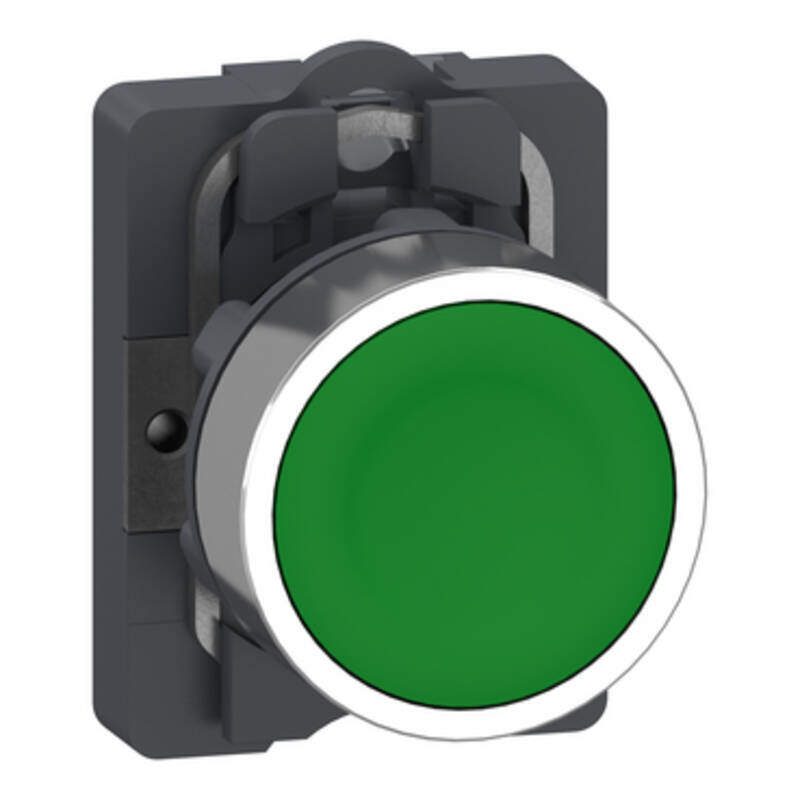

This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a modular flush green pushbutton that operates using a spring-return impulse mechanism. This flush pushbutton provides an ergonomic interface for controlling machines. It has 1 NO contact with slow-break operation. It provides an ergonomic interface for controlling machines and, due to its clear color, is easily distinguishable from a distance. This is a plastic pushbutton with a metallic-look ring design bezel. This pushbutton meets CE, CCC, and UKCA certifications and conforms to GB 14048.1, IEC 60947-1, GB 14048.5, and IEC 60947-5-1 standards. With its IP65 rating, the pushbutton is resistant to impact, dust, water, and vibration, making it suitable for operation in harsh environments. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connection. The Easy Harmony XA2 is a fit-for-purpose range at an affordable price without compromising on ease, robustness, availability, or services.
Specifications
Range of product: Harmony XA2
Device short name: XA2
Product or component type: Complete push-button
Device presentation: Complete product
Component name: XA2A
Bezel material: Plastic
Fixing collar material: Plastic
Mounting diameter: 22.5 mm
Sale per indivisible quantity: 1
Protective treatment: TC
Operating position: Any position
Fixing center: >= 30 x 40 mm (panel) – thickness: 1…5 mm
Fixing mode: Fixing nut: 2…2.4 N.m
Shape of signaling unit head: Round
Operator profile: Green flush, unmarked
Contacts type and composition: 1 NO
Contact operation: Slow-break
Mechanical durability: 1500000 cycles
Connections – terminals: Screw clamp terminal, <= 2 x 1.5 mm²
Screw clamp terminal, = 1 x 0.5 mm²
Faston terminals, connection size: 6.3 mm
Tightening torque: 0.8…1.2 N.m
Short-circuit protection: 10 A gL fuse conforming to IEC 60269-1
[Ith] conventional free air thermal current: 10 A
[Ui] rated insulation voltage: 600 V conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-1
[Ie] rated operational current: 3 A at 240 V, AC-15, A600
0.27 A at 250 V, DC-13, Q600
Electrical durability: 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1
500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1
Electrical reliability: Λ < 10exp(-8) at 24 V and 5 mA conforming to IEC 60947-5-4
Width: 30 mm
Height: 43 mm
Depth: 55 mm
Product weight: 0.032 kg
Cap/operator or lens colour: Green
Type of operator: Spring return
Ambient air temperature for storage: -40…70 °C
Ambient air temperature for operation: -25…55 °C
Overvoltage category: Class I conforming to IEC 536
IP degree of protection: IP65 conforming to IEC 60529
IK degree of protection: IK03 conforming to IEC 60529
Standards: GB 14048.1
IEC 60947-1
GB 14048.5
IEC 60947-5-1
Product certifications: CCC
CE
UKCA
Vibration resistance: 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance: 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Warranty (in months): 18
