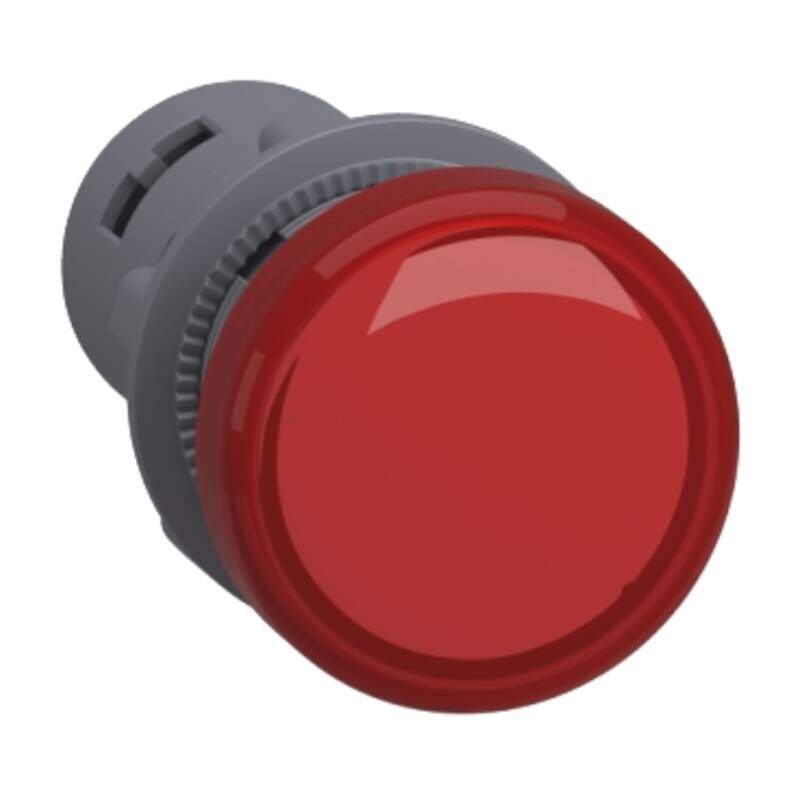

Product Details: Pilot light, plastic, red, Ø 22 mm, with integral LED, 220…230V AC, Anti-interference
Description: This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This monolithic red pilot light comes with integral LED. This single component pilot light provides clear visual feedback on the status of machines. This pilot light has a 220V to 230V AC rating. This is a plastic component and weighs 0.02kg. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is sold in lots of 10. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.
Specifications
Range of product: Harmony XA2
Product or component type: Monolithic pilot light
Device short name: XA2
Bezel material: Plastic
Mounting diameter: 22.5 mm
Shape of signaling unit head: Round
Cap/operator or lens colour: Red
Light source: LED
Bulb base: Integral LED
[Us] rated supply voltage: 220…230 V AC 50/60 Hz
Device presentation: Monolithic product
Terminals description ISO n°1: (X1-X2)PL
Device mounting: Fixing hole 22.3 +0.4/0 conforming to IEC 60947-5-1
Fixing center: >= 30 x 40 mm (support panel) metal – thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic – thickness: 2…6 mm
Fixing mode: Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m)
Marking: CCC
CE
Connections – terminals: Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, 1 x 0.5…1 x 2.5 mm² without cable end conforming to IEC 60947-1
Shape of screw head: Cross compatible with Philips No 2 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
[Ui] rated insulation voltage: 400 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-1
Signalling type: Steady
Supply voltage limits: 0.8…1.2 V AC
Current consumption: <= 20 mA
Service life: 40000 h at rated voltage and 25 °C
Height: 29 mm
Width: 29 mm
Depth: 53 mm
Product weight: 0.02 kg
Environment
Ambient air temperature for storage: -40…70 °C
Ambient air temperature for operation: -25…70 °C
Overvoltage category: Class I conforming to IEC 536
IP degree of protection: IP65 conforming to IEC 60529
IK degree of protection: IK05
Standards: GB 14048.5
IEC 60947-1
GB 14048.1
IEC 60947-5-1
IEC 60529
IEC 50102
Product certifications: CE
CCC
Vibration resistance: 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
Shock resistance: 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.5 cm
Package 1 Width: 2.9 cm
Package 1 Length: 2.9 cm
Package 1 Weight: 25 g
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 5.8 cm
Package 2 Width: 6.4 cm
Package 2 Length: 15.8 cm
Package 2 Weight: 300 g
Unit Type of Package 3: S02
Number of Units in Package 3: 160
Package 3 Height: 15 cm
Package 3 Width: 30 cm
Package 3 Length: 40 cm
Package 3 Weight: 5.8 kg
Contractual warranty
Warranty (in months): 18
