General Information

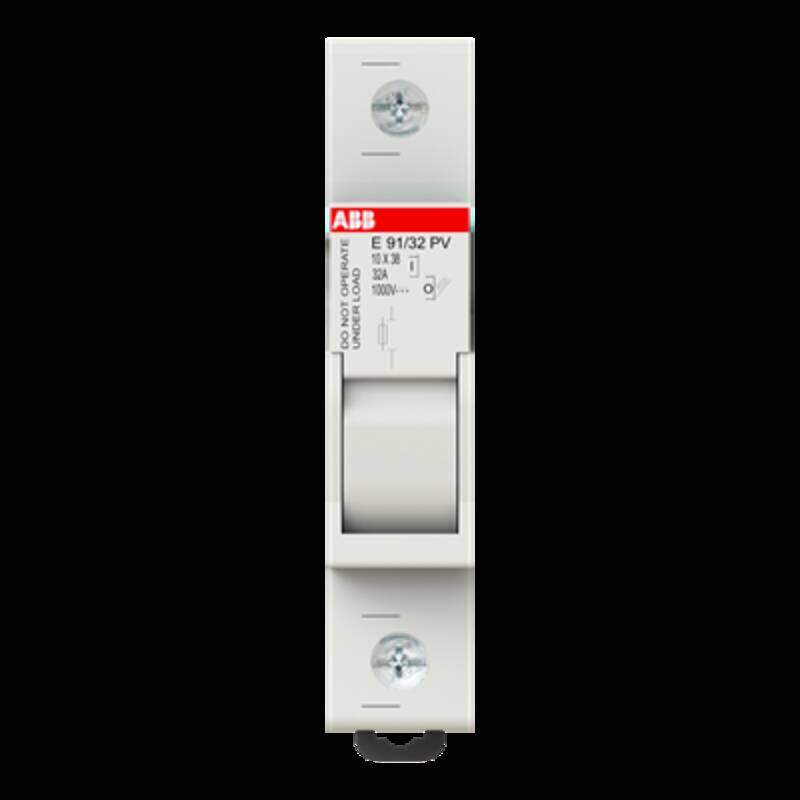

Extended Product Type: E 91/32 PV
Product ID: 2CSM204713R1801
EAN: 8012542047131
Catalog Description: E 91/32 PV Fuse disconnector
Long Description: E 91/32 PV is a fuseholder for overcurrent and short circuit protection in PV applications. No blown fuse indicator.
Technical
Number of Protected Poles: 1
Number of Poles: 1P
Tightening Torque: 2-2.5 N·m
Utilization Category: Connecting and disconnecting under no-load conditions – occasional actuation (DC-20B)
Fuse Type: gPV
Lock Type: Padlockable
Sealing Type: Sealing Wire
Material of Conductor: Copper
Options Provided: No
Recommended Screw Driver: Pozidriv 2
Remarks: For use with CU only 60°C, 75°C or 90°C wire
Shock and Vibration Withstand acc. to IEC 61373: Category 1, Class B
Connecting Capacity: Stranded 1.5…16 mm²nRigid 1.5…25 mm²
Fuse Size: 10×38 mm
Operating Humidity (RHamb): Maximum at +20 °C 90 %
Electrical
Rated Voltage (Ur): 1000 V
Rated Operational Voltage: DC-20B 1000 V DC
Rated Insulation Voltage (Ui): 1 kV
Rated Current (In): 32 A
Power Loss: Total 3 Wnat Rated Operating Conditions per Pole 3 W
Environmental
Ambient Air Temperature: Operation -5…+40 °CnStorage -25…+70 °C
Degree of Protection: IP20
Maximum Operating Altitude Permissible: 2000 m
Resistance to Vibrations: 1 mm 2 … 13 Hz
Resistance to Shock acc. to IEC 60068-2-27: 15g 18 shocks 11 ms
Dimensions
Width in Number of Modular Spacings: 1
Product Net Width: 18 mm
Product Net Height: 85 mm
Product Net Depth / Length: 64 mm
Product Net Weight: 61 g
Built-In Depth (t2): 64 mm
Ordering
Package Level 1 Units: box 6 piece
Package Level 1 Gross Weight: 0.369 kg
E-Number (Sweden): 2318053
Installation
Mounting Type: DIN-Rail
External Classifications and Standards
ETIM 9: EC002705 – Holder for cylindrical fuse
ETIM 10: EC002705 – Holder for cylindrical fuse
UNSPSC: 39122233
eClass: V11.0 : 27142121
IDEA Granular Category Code (IGCC): 5291 >> Fuse switch disconnector
Object Classification Code: F
Standards: IEC 60947-3nUL 4248-19
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
