Description

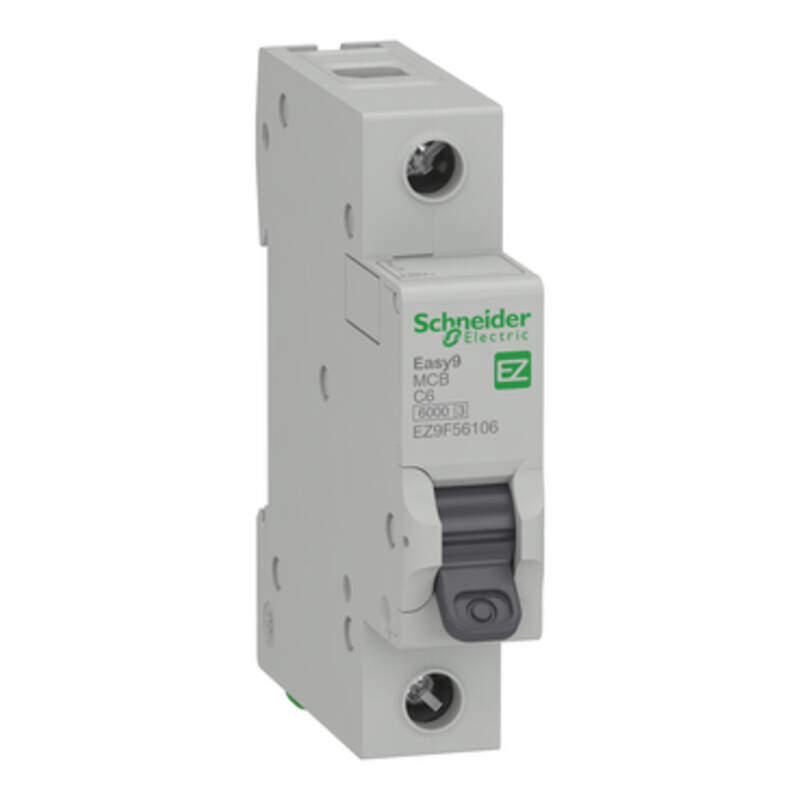

Easy9 miniature circuit breaker – 1P – 6 A – C curve – 6000 A – 230 V
This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 6 A rated current, and C tripping curve. The rated short circuit breaking capacity goes up to 6000 A at 230 V AC conforming to IEC 60898-1 standard.
Key Features:
- Combines short-circuit and overload currents protection.
- Suitability for residential isolation according to IEC 60898-1 standard.
- Easy to install with unified terminal design and wiring indication.
- Compliant with global RoHS/Reach regulation to protect your family and environment.
Specifications:
- Range: Easy9
- Device Application: Distribution
- Poles: 1P
- Rated Current: 6 A
- Network Type: AC
- Trip Unit Technology: Thermal-magnetic
- Curve Code: C
- Breaking Capacity: 6000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1
- Height: 81 mm
- Width: 18 mm
- Depth: 66.5 mm
- IP Degree of Protection: IP20 conforming to IEC 60529
