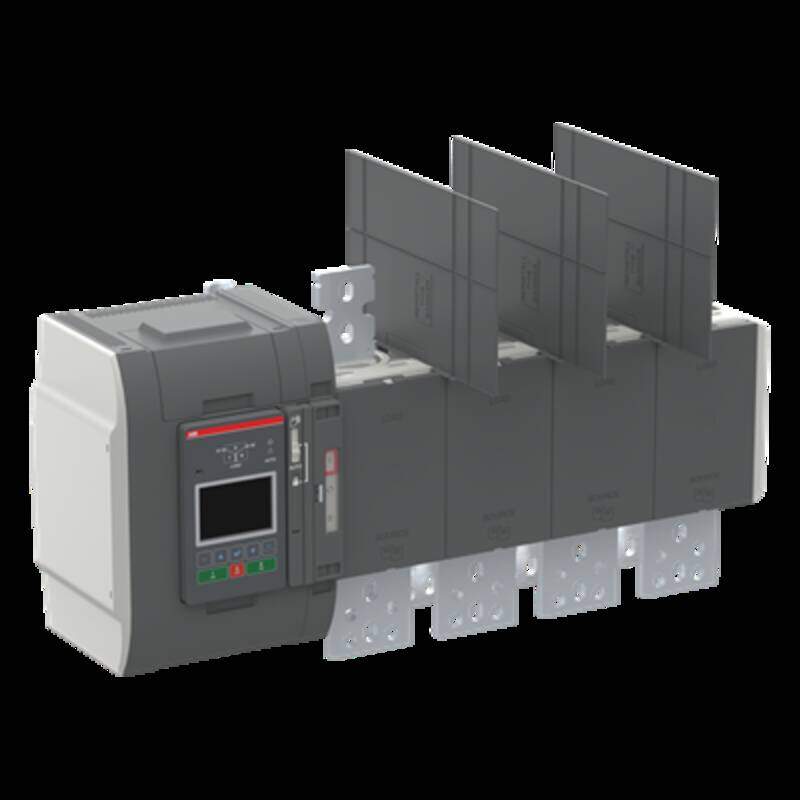

OXB1600E3S3QB Automatic Transfer Switch
The all-new TruONE is the world’s first true purpose-built automatic transfer switch, engineered to incorporate switch and controller in one seamless unit. Performance tested beyond standard requirements, TruONE stands ready to ensure the steady delivery of critical power at all times. Its self-contained design reduces the number of wires and connections, which speeds installation and minimizes the potential for connection failures to ensure best-in-class reliability. Its predictive maintenance and modular components reduce downtime and service costs. And its advanced connectivity is ready for the future.
Every TruONE features a wide voltage range from 200 to 480 VAC (with +/-20% tolerance), reducing the need to stock multiple SKUs, reducing inventory and saving space in the warehouse.
Main characteristics: Open style ATS, delayed transition type I-O-II operation, Level 3 controller (LCD).
Product ID: 1SCA152412R1001
EAN: 6417019833934
Number of Poles: 4
Conventional Free-air Thermal Current (Ith): 1600 A
Rated Operational Current AC-31B (Ie): 1600 A
Rated Operational Current AC-32B (Ie): 1500 A
Rated Operational Current AC-33B (Ie): 1250 A
Rated Short-time Withstand Current (Icw): 65 kA
Rated Operational Voltage: 200…480 V AC
Rated Frequency: 50-60 Hz
Rated Impulse Withstand Voltage (Uimp): 12 kV
Rated Insulation Voltage (Ui): 1000 V
Degree of Protection: Front IP20
Pollution Degree: 3
Transition Type: Delayed
Controller Type: Level 3 (LCD)
Standards: IEC60947-6-1
Dimensions: Width 71.2 cm, Height 35.9 cm, Depth 21.2 cm
Weight: 37.08 kg
