Description

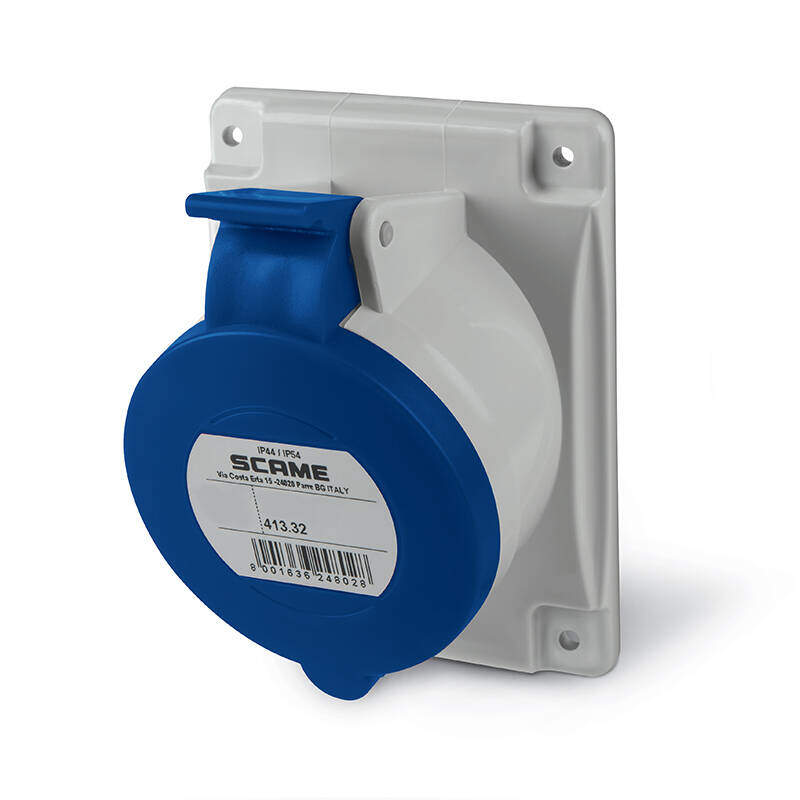

FLUSH-MOUNTING SOCKET – OPTIMA Series
The 413.3263 is a high-quality flush-mounting socket from the OPTIMA Series, designed for reliable industrial electrical connections. It features a rated current of 32A and a 2P+E pole configuration with a 6h hour position, operating at 200-250V and 50Hz/60Hz working frequency.
Technical Specifications
- Mounting: Flush mounting
- Colour: Blue
- Material: Thermoplastic
- Protection Degree: Splash proof (IP44/IP54), IK08
- Outlet Type: Angled
- Terminals: Screw terminals
- Contact Material: CuZn (brass)
- Flange Size: 84x106mm
- Net Weight: 0.182 kg
Standards & Directives
Compliant with EN IEC 60309-1 (2022), EN IEC 60309-2 (2022), and Low Voltage Directive 2014/35/UE.
