Description

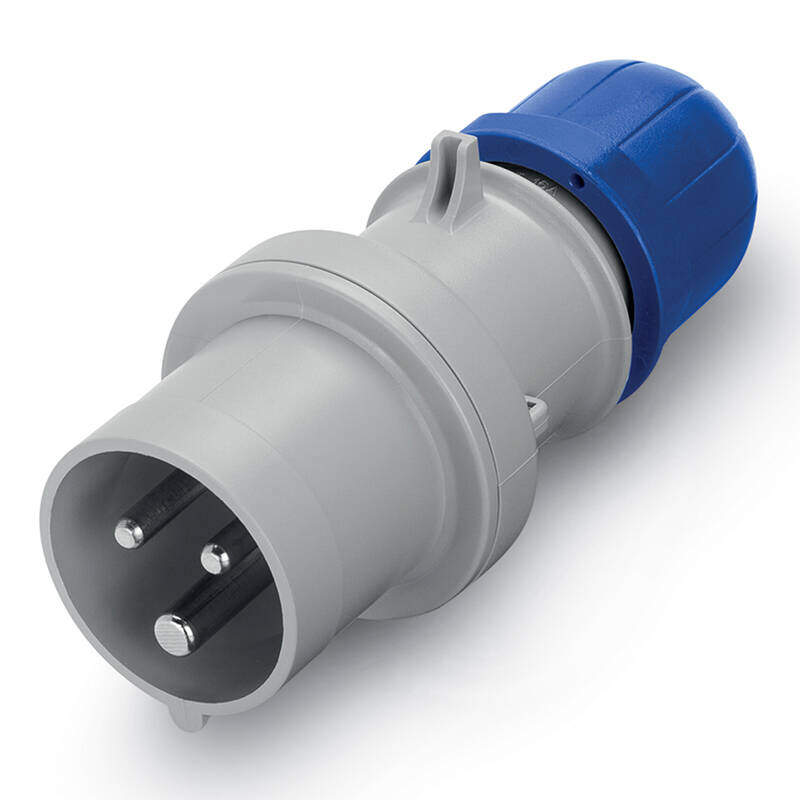

OPTIMA SERIES – PLUG 213.1633
The plug from the OPTIMA Series is designed for a rated voltage of 200-250V and a current of 16A. Featuring 2P+E poles and a 6h hour position, it operates efficiently at both 50Hz and 60Hz frequencies. With a protection degree of IP44/IP54, it offers reliable performance in various environments. The plug is equipped with screw terminals and is compatible with straight type outlets.
Technical Specifications
- Commercial Series: OPTIMA Series
- Synthetical description: PLUG
- Mounting version: PORTABLE
- Rated current: 16A
- Poles: 2P+E
- Hour position: 6h
- Rated voltage: 200-250V
- Working frequency: 50Hz / 60Hz
- Colour: BLUE
- Material: THERMOPLASTIC
- Protection degree: Splash proof
- Protection degree IP: IP44/IP54
- Protection degree IK: IK08
- Types of available outlets: STRAIGHT
- Terminals: Screw terminals
- Contact material: CuZn (brass)
- Surface treatment contacts: Nickel-plated
- Cable entry: CABLE GLAND
Product Details
- EAN code: 8001636222363
- INTRASTAT code: 8536699099
- Net weight: 0.129 kg
- Minimum Quantity: 10
Packaging Information
Packaging Box: Quantity: 10, EAN: 8001636671512, Dimensions: 29.5 cm x 11.5 cm x 16.0 cm, Volume: 5428.0 CCM
Packaging Carton: Quantity: 50, EAN: 8001636677835, Dimensions: 33.5 cm x 25.0 cm x 43.0 cm, Volume: 36012.5 CCM
