Description

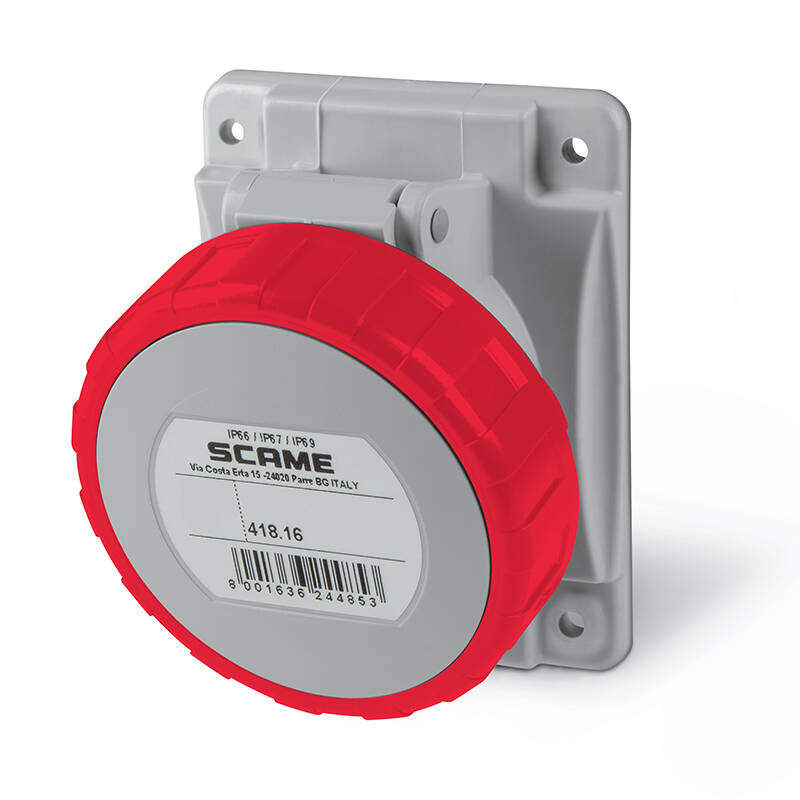

OPTIMA Series Flush-Mounting Socket – 418.1667
The flush-mounting socket from the OPTIMA Series, engineered for robust electrical performance, is designed to handle a rated voltage of 346-415V and a rated current of 16A, making it suitable for demanding industrial environments. It features a 3P+N+E configuration with a 6h hour position, ensuring reliable connectivity. The socket operates efficiently at both 50Hz and 60Hz frequencies. With a high protection degree of IP66/IP67/IP69, it offers superior resistance to dust and water ingress. The screw terminals provide secure and stable connections, while the angled outlet design enhances accessibility and installation flexibility. A black version is available by adding “.K” to the catalogue number.
Technical Specifications
- Commercial Series: OPTIMA Series
- Synthetical Description: FLUSH-MOUNTING SOCKET
- Mounting Version: FLUSH MOUNTING
- Rated Current: 16A
- Poles: 3P+N+E
- Hour Position: 6h
- Rated Voltage: 346-415V
- Working Frequency: 50Hz, 60Hz
- Colour: RED
- Material: THERMOPLASTIC
- Protection Degree: Watertight
- IP Protection: IP66/IP67/IP69
- IK Protection: IK08
- Outlet Type: ANGLED
- Terminals: Screw terminals
- Contact Material: CuZn (brass)
- Flange Size: 7.0 cm x 8.7 cm
- Net Weight: 0.195 kg
