Description

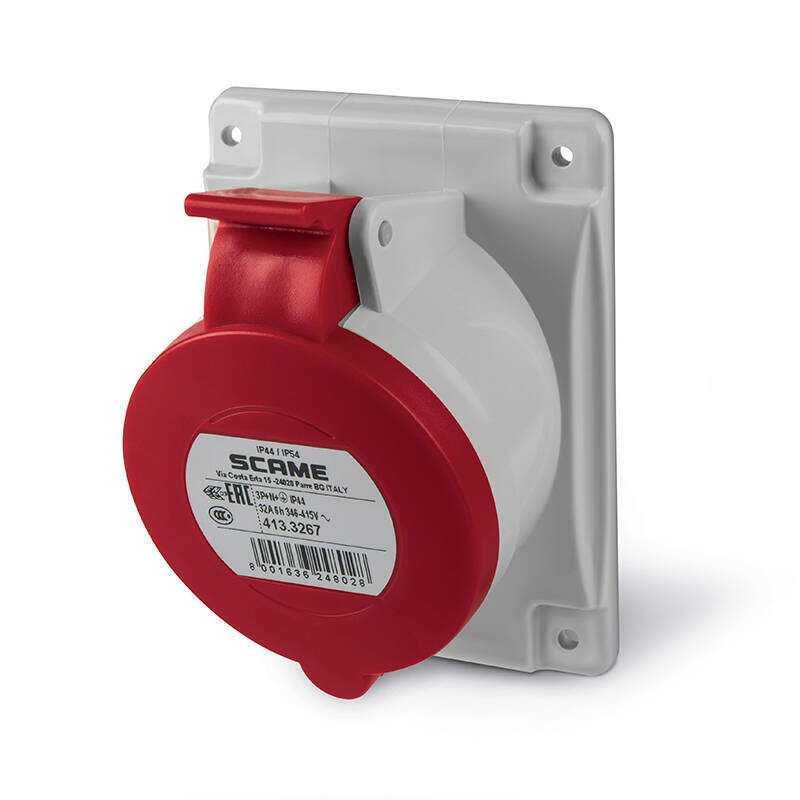

OPTIMA Series FLUSH-MOUNTING SOCKET – 413.3267
The flush-mounting socket from the OPTIMA Series is engineered for robust electrical performance, supporting a rated voltage of 346-415V and a rated current of 32A. Designed with 3P+N+E poles and a 6h hour position, it operates efficiently at both 50Hz and 60Hz frequencies. The socket offers a protection degree of IP44/IP54, ensuring reliable operation in various environments. Equipped with screw terminals, it features angled outlets for optimal connectivity. A black version is available by appending “.K” to the catalogue number.
Technical Specifications
- Commercial Series: OPTIMA Series
- Synthetical description: FLUSH-MOUNTING SOCKET
- Mounting version: FLUSH MOUNTING
- Rated current: 32A
- Poles: 3P+N+E
- Hour position: 6h
- Rated voltage: 346-415V
- Working frequency: 50Hz / 60Hz
- Colour: RED
- Material: THERMOPLASTIC
- Protection degree: Splash proof
- Protection degree IP: IP44/IP54
- Protection degree IK: IK08
- Types of available outlets: ANGLED
- Terminals: Screw terminals
- Contact material: CuZn (brass)
- Flange: 8.4×10.6 cm
- Net weight: 0.224 kg
- Intrastat code: 8536699099
- EAN code: 8001636248028
