Description

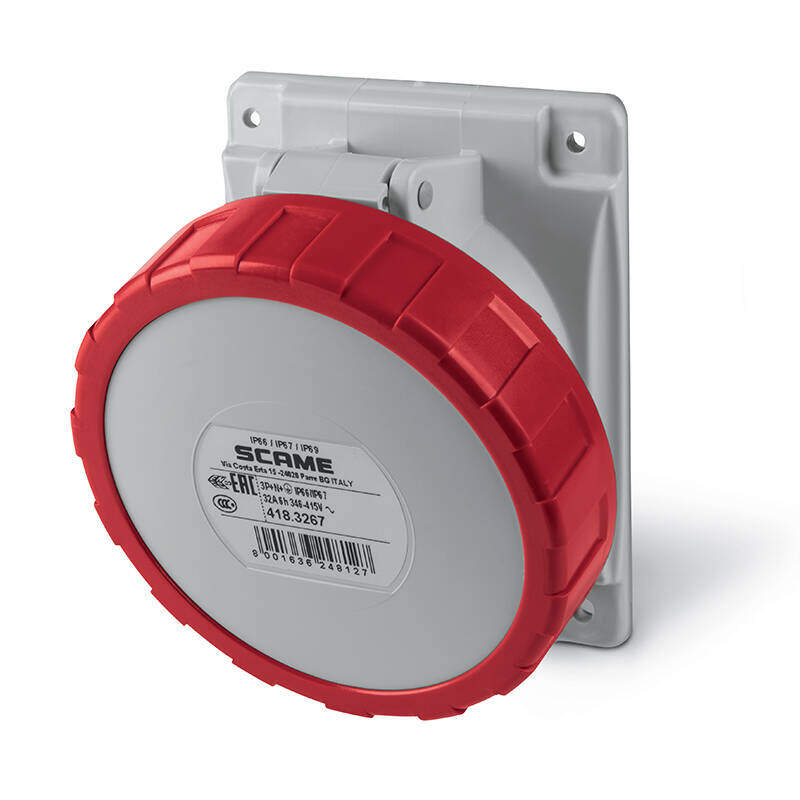

OPTIMA Series Flush-Mounting Socket
The 418.3267 is a high-performance flush-mounting socket from the OPTIMA Series, engineered for robust electrical performance in demanding industrial environments. It features a watertight protection rating of IP66/IP67/IP69 and an impact resistance of IK08.
Technical Specifications
- Rated Current: 32A
- Poles: 3P+N+E (5 Poles)
- Hour Position: 6h
- Rated Voltage: 346-415V
- Working Frequency: 50Hz / 60Hz
- Colour: Red
- Material: Thermoplastic
- Terminals: Screw terminals
- Contact Material: CuZn (brass)
- Flange Size: 84x106mm
- Outlet Type: Angled
