Description

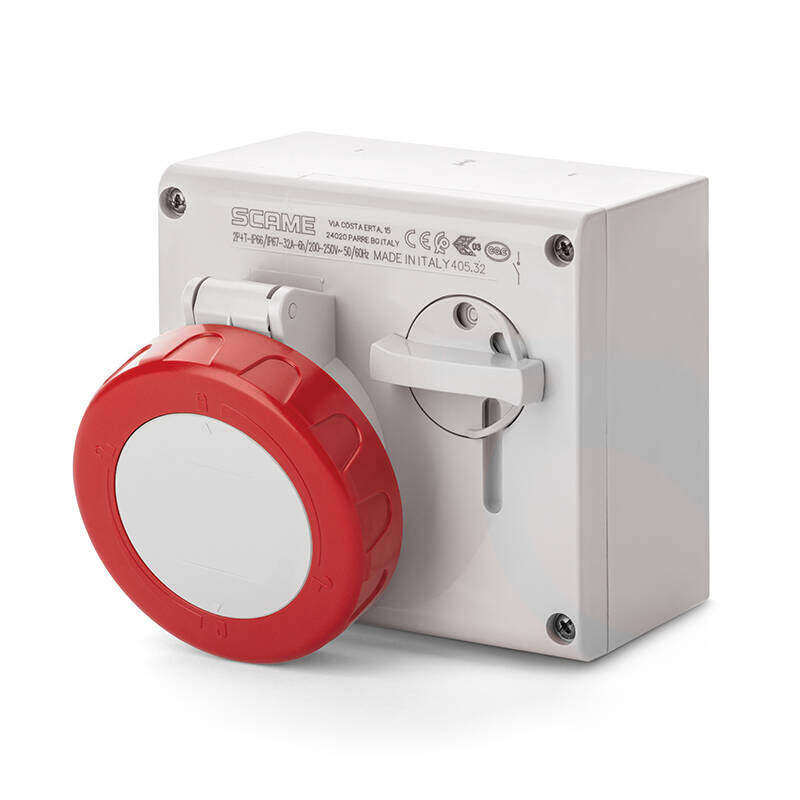

INTERLOCKED SOCKET
Product Code: 505.3287
Description: The OMNIA series interlocked socket is designed for surface mounting and operates at a rated voltage of 346-415V with a rated current of 32A. Featuring a 3P+N+E configuration and a 6h hour position, it supports both 50Hz and 60Hz working frequencies. This socket offers robust protection with an IP66/IP67 rating and is constructed from durable thermoplastic material. It includes a mechanical interlock for enhanced safety and is engineered for industrial use. Notably, it is designed without a fuse holder, ensuring streamlined functionality in demanding environments.
Tech Data
Commercial Series: OMNIA Series
Synthetical description: INTERLOCKED SOCKET
Mounting version: SURFACE MOUNTING
Rated current: 32A
Poles: 3P+N+E
Hour position: 6h
Rated voltage: 346-415V
Working frequency: 60Hz, 50Hz
Colour: RED
Material: THERMOPLASTIC
Protection degree: Watertight
Protection degree IP: IP66/IP67
Protection degree IK: IK08
Terminals: Screw terminals
Contact material: CuZn (brass)
Flange: 136X125MM_PAR
Options: With mechanical interlock
Notes: WITHOUT FUSE HOLDER
Padlock: ø4,7mm
Catalogue notes: – Blank side with drilling point marks
– Note: in case of mounting with ADVANCE2 System, use METRIC drilling point mark.
Product
EAN code: 8001636050430
INTRASTAT code: 8536699099
Net weight: 0.764 KG
Minimum Quantity: 1
Packaging
EAN code: 8001636921150
Quantity: 6
Depth: 42.0 cm
Width: 31.0 cm
Height: 19.5 cm
Volume: 25389.0 CCM
