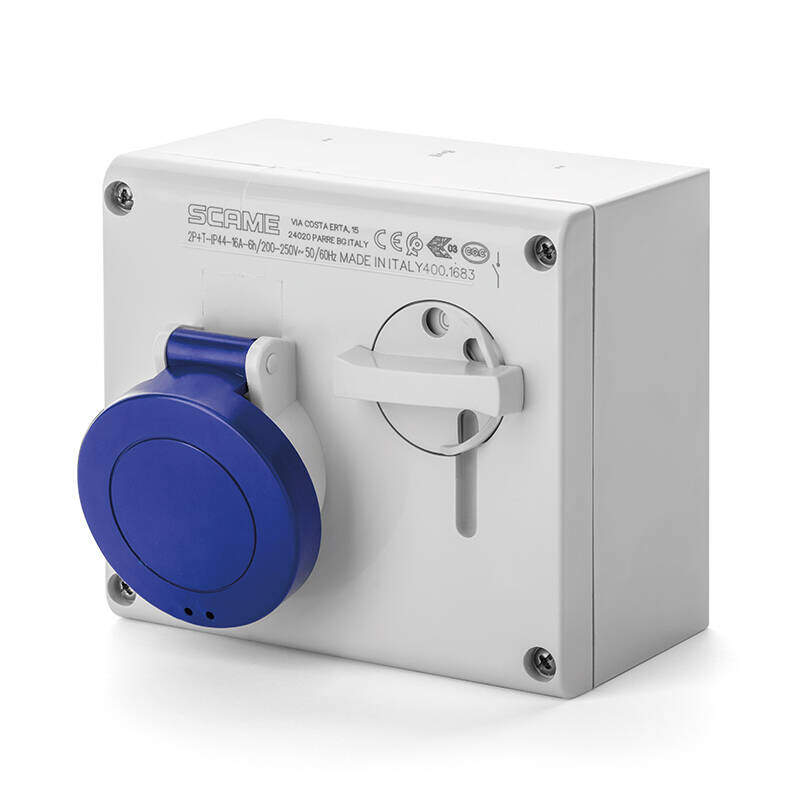

INTERLOCKED SOCKET
SKU: 500.1683
Description: The OMNIA series interlocked socket is designed for surface mounting and features a 2P+E configuration. It operates at a rated voltage of 200-250V and a rated current of 16A, with a 6h hour position. Suitable for both 50Hz and 60Hz working frequencies, it offers reliable protection with an IP44 rating. Constructed from durable thermoplastic material, this socket includes a mechanical interlock for enhanced safety. Engineered for industrial use, it ensures dependable performance in various environments. Note that this model does not include a fuse holder.
Tech Data
Commercial Series: OMNIA Series
Synthetical description: INTERLOCKED SOCKET
Mounting version: SURFACE MOUNTING
Rated current: 16A
Poles: 2P+E
Hour position: 6h
Rated voltage: 200-250V
Working frequency: 60Hz, 50Hz
Colour: BLUE
Material: THERMOPLASTIC
Protection degree: Splash proof
Protection degree IP: IP44
Protection degree IK: IK08
Terminals: Screw terminals
Contact material: CuZn (brass)
Flange: 136X125MM_PAR
Options: With mechanical interlock
Notes: WITHOUT FUSE HOLDER
Padlock: ø4,7mm
Catalogue notes: – Blank side with drilling point marksn- Note: in case of mounting with ADVANCE2 System, use METRIC drilling point mark.
Product
EAN code: 8001636049441
INTRASTAT code: 8536699099
Net weight: 0.564 KG
Minimum Quantity: 6
Packaging
Packaging Carton EAN code: 8001636922041
Quantity: 6
Depth: 420.0 MM
Width: 310.0 MM
Height: 195.0 MM
Volume: 25389.0 CCM
