Description
General Information
Extended Product Type: IS2-EC2080K
Product ID: EC2080K
EAN: 8015646744913
Catalog Description: STANDARD BLIND FRONT/REAR DOOR 2000X800MM (HXW)

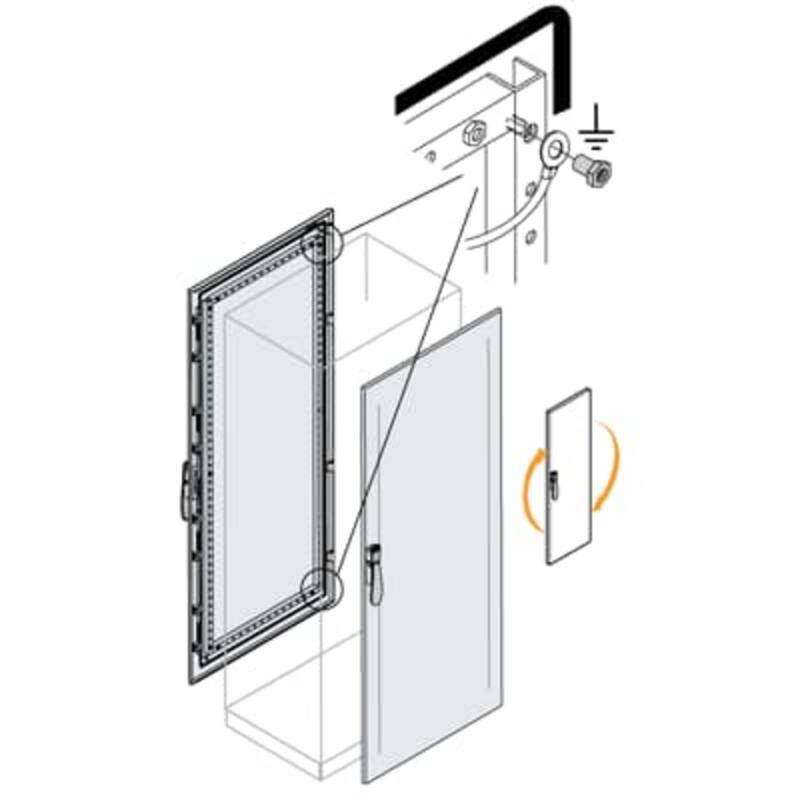

Long Description: Blind door 2000x800mm (HxW)
Technical
Configuration Type: 3. Door
Enclosure Type: Kit – blind front door
Product Type: 5B5B20B230
Door Type: Single
Door Surface Finishing: Opaque
Remarks: ETIM
Design
Surface Finishing: Orange Peel, RAL 7035
Material: Pickled steel sheet
Door Material: Steel Sheet
RAL Number: RAL 7035 – Light Grey
Dimensions
Product Net Width: 794 mm
Product Net Height: 1996 mm
Product Net Depth / Length: 46 mm
Product Net Weight: 33.599 kg
Reference Height: 2000 mm
Reference Width: 800 mm
Ordering
Package Level 1 Units: box 1 piece
Package Level 1 Gross Weight: 33,6 kg
Installation
Mounting Type: Kit
External Classifications and Standards
ETIM 9: EC000747 – Door/operating panel (enclosure/cabinet)
ETIM 10: EC000747 – Door/operating panel (enclosure/cabinet)
eClass: V11.1 : 27182204
Object Classification Code: U
Standards: See code for structure
WEEE Category: Product Not in WEEE Scope
