Description
General Information
Extended Product Type: IS2-EH2061K
Product ID: EH2061K
EAN: 8015646746528
Catalog Description: BLIND PANELXSEPAR.CELL 200X600MM 7035

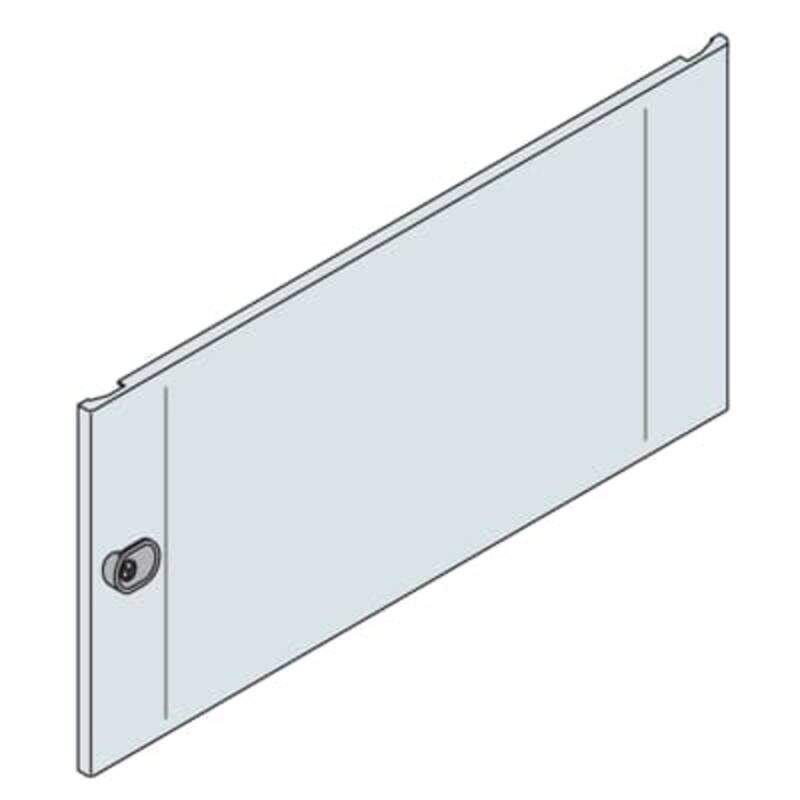

Long Description: Front panels for compartments 200x600mm (HxW)
Technical
Suitable For: IS2 Enclosures for Automation
Suitable for Product Class: Control and Automation Board
Product Type: 5B5B30B370
Door Type: Panel Door
Door Surface Finishing: Opaque
Remarks: ETIM
Design
Surface Finishing: Orange Peel, RAL 7035
Material: Pickled steel sheet
Door Material: Steel Sheet
RAL Number: RAL 7035 – Light Grey
Dimensions
Product Net Width: 578.4 mm
Product Net Height: 175 mm
Product Net Depth / Length: 16 mm
Product Net Weight: 2.780 kg
Ordering
Package Level 1 Units: box 1 piece
Package Level 1 Gross Weight: 2.840 kg
External Classifications and Standards
ETIM 9: EC000747 – Door/operating panel (enclosure/cabinet)
ETIM 10: EC000747 – Door/operating panel (enclosure/cabinet)
eClass: V11.1 : 27182204
Object Classification Code: U
Standards: See code for structure
WEEE Category: Product Not in WEEE Scope
