Description

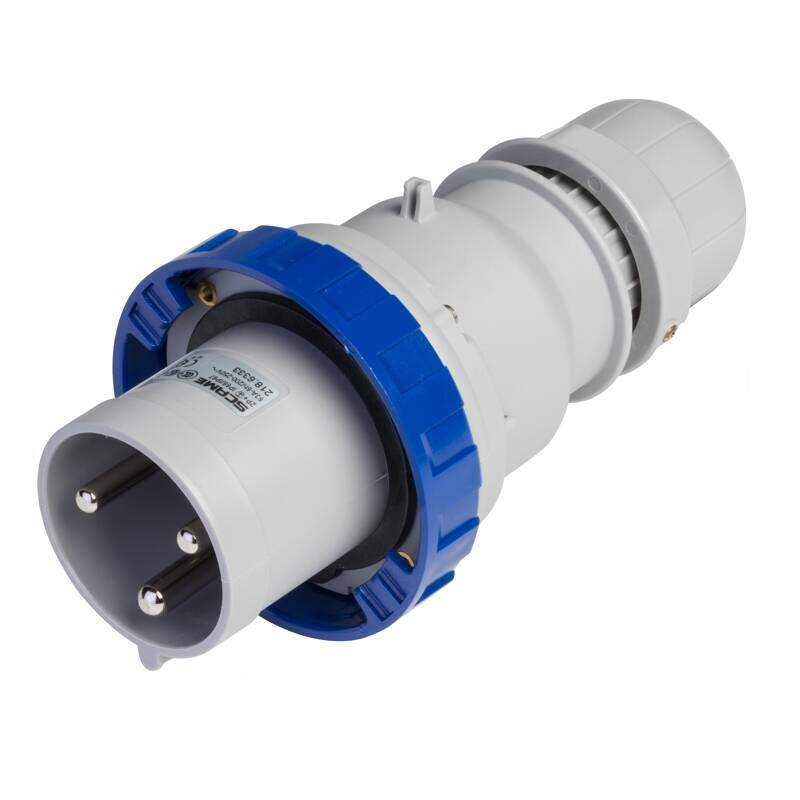

PLUG – 63A 2P+E 6h 200-250V 60Hz 50Hz Mantle terminals
SKU: 218.6333
Series: OPTIMA Series
The OPTIMA Series plug, designed for high-performance electrical applications, operates at a rated voltage of 200-250V and a rated current of 63A. It features a 2P+E configuration with a 6h hour position, compatible with both 50Hz and 60Hz frequencies. Offering exceptional protection with IP66/IP67/IP69 ratings, it effectively resists dust and water ingress. Equipped with mantle terminals, it facilitates secure and efficient connections. Available in a straight outlet type, this plug is engineered for demanding industrial environments. easy-plug. A version in black is also available by appending “.K” to the catalogue number.
Technical Specifications
Mounting version: PORTABLE
Rated current: 63A
Poles: 2P+E
Hour position: 6h
Rated voltage: 200-250V
Working frequency: 50Hz, 60Hz
Colour: BLUE
Material: THERMOPLASTIC
Protection degree: Watertight
IP Protection degree: IP66/IP67/IP69
IK Protection degree: IK08
Outlet type: STRAIGHT
Terminals: Mantle terminals
Contact material: CuZn (brass)
Surface treatment contacts: Nickel-plated
Cable entry: CABLE GLAND
Notes: EASY-PLUG
GTIN: 8001636224558
Customs Tariff Code: 8536699099
Net weight: 0.543 kg
Packaging Information
Minimum Order Quantity: 6
Packaging Box EAN: 8001636675770
Packaging Box Quantity: 6
Packaging Box Dimensions (DxWxH): 30.8 x 26.8 x 18.0 cm
Packaging Carton EAN: 8001636675787
Packaging Carton Quantity: 24
Packaging Carton Dimensions (DxWxH): 56.0 x 37.5 x 34.5 cm
