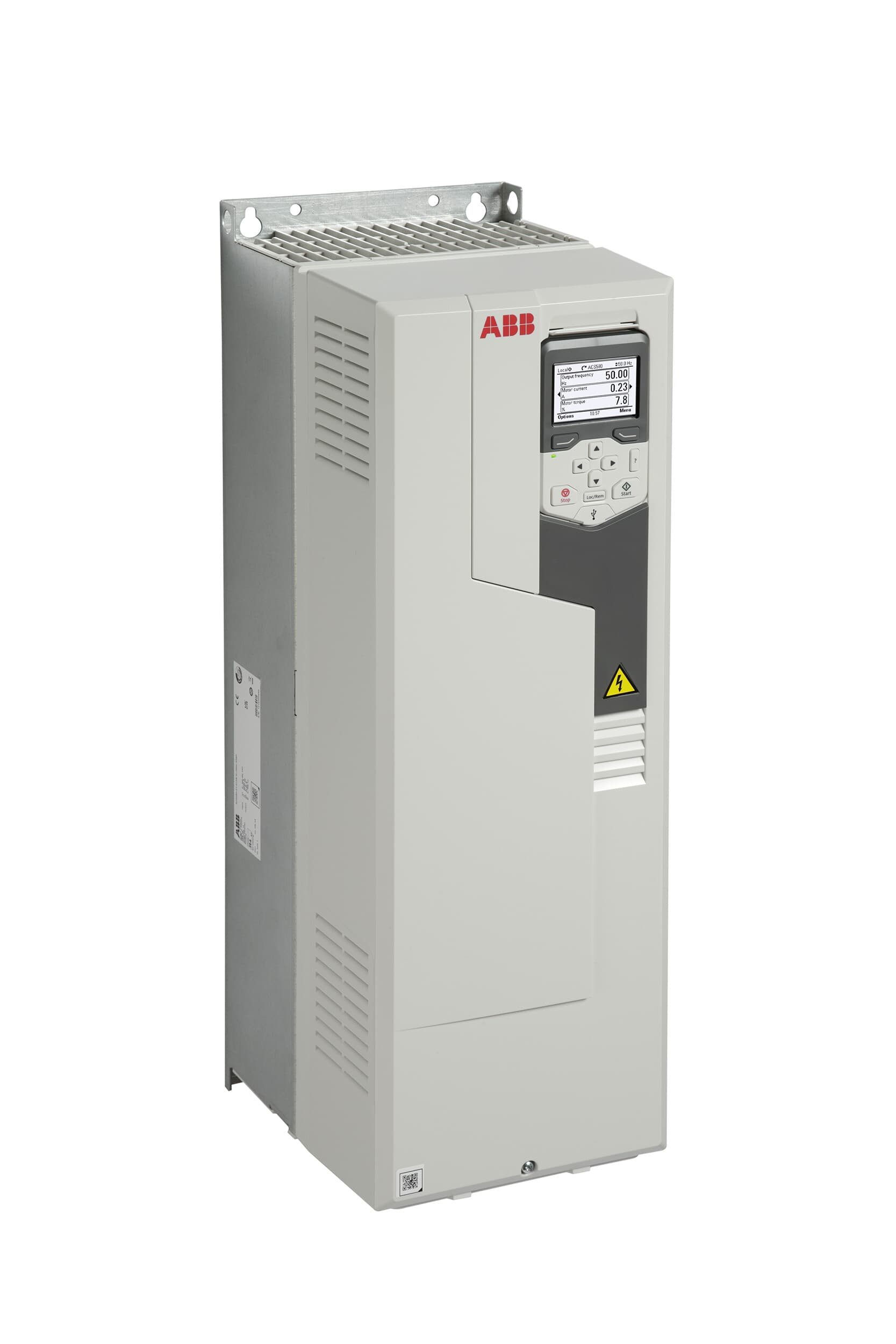

ACS580-01-062A-4 LV AC General Purpose Wall-Mounted Drive
Product ID: 3AUA0000080498
ABB Type Designation: ACS580-01-062A-4
EAN: 6438177305545
Description: LV AC general purpose wall-mounted drive, IEC: Pn 30 kW, 62 A, 400 V (ACS580-01-062A-4)
The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while the rugged and robust design makes it suitable for various environments. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard; IP55 and flange mounting units are also available.
Ordering Information
Customs Tariff Code: 85044086
HS Code: 850440 – Electrical machinery and equipment and parts thereof; sound recorders and reproducers, television image and sound recorders and reproducers, and parts and accessories of such articles; Electrical transformers, static converters (e.g., rectifiers) and inductors; Static converters
Invoice Description: ACS580-01-062A-4 PN: 30 kW, IN: 62 A
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit of Measure: piece
Dimensions
Net Weight: 20 kg
Net Depth/Length: 25.7 cm
Net Height: 63.6 cm
Net Width: 20.3 cm
Package Level 1 Depth/Length: 79.4 cm
Package Level 1 Height: 35.8 cm
Package Level 1 Width: 27.8 cm
Package Level 1 Units: 1 carton
Technical Specifications
Number of Phases: 3-phase
Degree of Protection: IP21
Enclosure Type NEMA: Type1
Altitude: 4000 m
Operating Humidity: 5 … 95 %
Sound Level: 70 dB(A)
Battery Information: Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Frequency: 47.5 … 63 Hz
Frame Size: R4
Input Voltage: 380 … 480 V
Mounting Type: Wall-mounted
Communication Protocols: CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP
Hardware Interfaces: Industrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1
Includes: Control unit, PC connection
Analog Inputs: 2
Analog Outputs: 2
Digital Inputs / Outputs: 6 / 3
Output Current Normal Use: 62 A
Output Current Light-Overload Use: 58 A
Output Current Heavy-Duty Use: 45 A
Output Power Normal Use: 30 kW
Output Power Light-Overload Use: 30 kW
Output Power Heavy-Duty Use: 22.0 kW
Power Consumption: 777 W
Apparent Power Output: 43 kV·A
Efficiency Level: IE2
Standby Loss: 19 W
Temperature Rating Minimum: -15 °C
Certificates and Compliance
Declaration of Conformity – CE: 3AXD10001818627
REACH Date: 20250905
REACH Declaration: 9AKK107992A7060
REACH Information: True – contains substances > 0.1 mass percentage
RoHS Date: 20240508
RoHS Declaration: 3AXD10001818627
RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Impact
Global Warming Potential GWP Total: Distribution (Module A4) 4 kilograms of carbon dioxide equivalentnEnd of Life (Modules C1-C4) 34 kilograms of carbon dioxide equivalentnInstallation (Module A5) 6 kilograms of carbon dioxide equivalentnManufacturing (Modules A1-A3) 310 kilograms of carbon dioxide equivalentnTotal 8316 kilograms of carbon dioxide equivalentnUse (Modules B1-B7) 7962 kilograms of carbon dioxide equivalent
Classifications and Standards
WEEE Category: 4. Large Equipment (Any External Dimension More Than 50 cm)
ETIM 9: EC001857 – Frequency converter =< 1 kV
UNSPSC: 39122001
