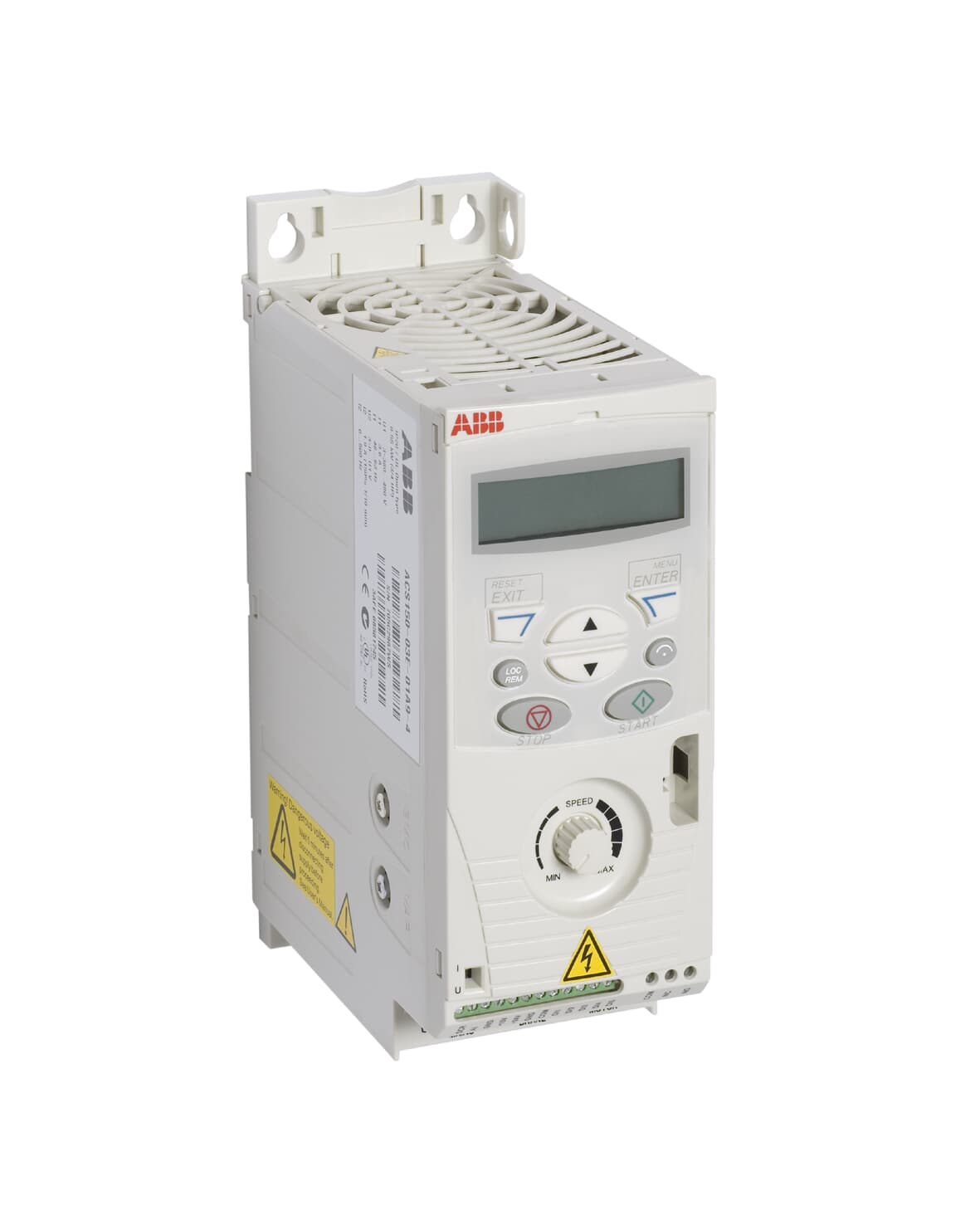

ACS150-03E-01A9-4 LV AC Micro Drive
Global Commercial Alias: ACS150-03E-01A9-4
Product ID: 68581745
EAN: 6410038079437
Description: LV AC micro drive, IEC: Pn 0.55 kW, 1.9 A
The ACS150 drives are designed to be incorporated into a wide variety of machines such as mixers, conveyors, fans or pumps. The ACS150 drives have an integrated user panel, potentiometer and a variety of features such as pre-defined connection macros, making drive selection and configuration easy. With an optional FlashDrop tool these drives can be configured quickly in volume.
Customs Tariff Code: 85044085
HS Code Description: ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES; Electrical transformers, static converters (for example, rectifiers) and inductors; Static converters
Invoice Description: ACS150-03E-01A9-4 Pn 0,55kW, I2n 1,9A IP20
Order Information: Made To Order: No; Minimum Order Quantity: 1 piece; Order Multiple: 1 piece; Quote Only: No; Selling Unit of Measure: piece
Physical Dimensions (cm): Net Depth/Length: 14.2; Net Height: 23.9; Net Width: 7; Package Level 1 Depth/Length: 34.8; Package Level 1 Height: 13; Package Level 1 Width: 22; Package Level 1 Units: 1 carton
Weight: Product Net Weight: 1.2 kg
Technical Specifications: Number of Phases: 3-phase; Degree of Protection: IP20; Enclosure Type NEMA: Open Type; Frequency: 50/60 Hz; Frame Size: R1; Input Voltage: 380 … 480 V; Mounting Type: Module for cabinet building
Interfaces: Industrial Ethernet: 0; PROFINET: 0; RS-232: 0; RS-422: 0; RS-485: 0; Serial TTY: 0; USB: 0; Parallel: 0; Other: 1
Includes: With control unit, Without optical interface, With PC connection
Inputs and Outputs: Analog Inputs: 1; Analog Outputs: 0; Digital Inputs/Outputs: 5/0
Electrical Performance: Output Current Normal Use: 1.9 A; Output Current Light-Overload Use: 1.9 A; Output Power Normal Use: 0.55 kW; Output Power Light-Overload Use: 0.6 kW; Power Consumption: 26 W; Apparent Power Output: 1.3 kV·A; Efficiency Level: IE2; Standby Loss: 7 W
Temperature Rating: Maximum 40 °C
Certificates and Declarations: Declaration of Conformity – CE: 3AXD10000499279; REACH Date: 20250905; REACH Declaration: 9AKK107992A7060; REACH Information: True – contains substances > 0.1 mass percentage; RoHS Date: 20230303; RoHS Declaration: 3AXD10000499279; RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information: SCIP: 93418047-339e-405b-ac09-2058092748e2 Finland; WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Classification: UNSPSC: 39122001
