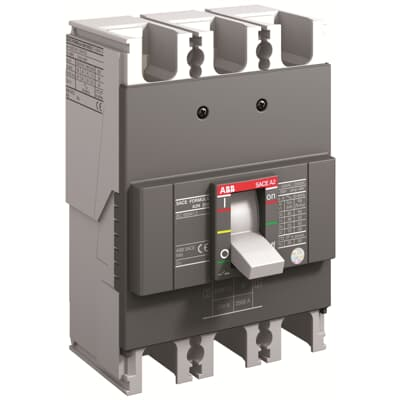

Product: A2N 250 TMF 250-2500 3p F F
ID: 1SDA066786R1
EAN: 8015644006969
Description: C.BREAKER FORMULA A2N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 250-2500 A
Main Type: SACE FORMULA
Type: Moulded Case Circuit Breaker
Product Type: Automatic Circuit Breaker
Version: F
Number of Poles: 3P
Electrical Durability: 4000 cycle
Mechanical Durability: 10000 cycle
Opening Time: CB with SOR 15 ms
Power Loss per Pole: 16 W
Rated Current: Main Circuit 250 A
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): 690 V
Rated Operational Voltage: 550 V AC, 250 V DC
Rated Service Short-Circuit Breaking Capacity (Ics): 42.5 kA at 240 V AC, 18 kA at 380 V AC, 18 kA at 415 V AC, 12.5 kA at 440 V AC, 12.5 kA at 480 V AC, 5 kA at 500 V AC, 18 kA at 250 V DC (2 Poles in Series)
Rated Ultimate Short-Circuit Breaking Capacity (Icu): 85 kA at 240 V AC, 36 kA at 380 V AC, 36 kA at 415 V AC, 25 kA at 440 V AC, 25 kA at 480 V AC, 10 kA at 500 V AC, 36 kA at 250 V DC (2 Poles in Series)
Rated Uninterrupted Current (Iu): 250 A
Release Type: TMF (TM)
Short-Circuit Performance Level: N
Standards: IEC
Sub-type: A2
Terminal Connection Type: Front
Dimensions (W x H x D): 10.5 cm x 15.0 cm x 6.0 cm
Net Weight: 1.394 kg
Package Level 1 Dimensions (W x H x D): 16.2 cm x 12.0 cm x 15.5 cm
Package Level 1 Gross Weight: 1.467 kg
Order Code US and Canada: ABN250TW
Minimum Order Quantity: 1 piece
Customs Tariff Code: 85362090
Material Compliance: REACH and RoHS declarations available; RoHS compliant following EU Directive 2011/65/EU and Amendment 2015/863 (July 22, 2019)
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
