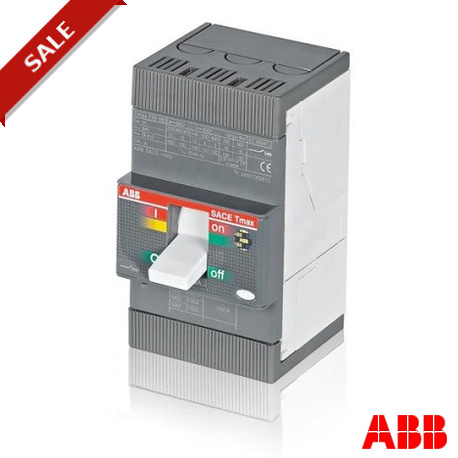

Product: T1B 160 TMF160-1600 1p F FC Cu (1–70mm2)
Reference: T1B160
Code: 1SDA052626R1
Manufacturer: ABB
Units per package: 1
Dimensions:
Product Net Width: 2.5 cm
Product Net Height: 13.0 cm
Product Net Depth: 7.0 cm
Product Net Weight: 0.35 kg
Package Information:
Package Width: 11.75 cm
Package Height: 3.5 cm
Package Length: 14.0 cm
Package Gross Weight: 0.42 kg
Ordering Information:
EAN: 8015644532901
Minimum Order Quantity: 1 piece
Customs Tariff Code: 85362090
Electrical Characteristics:
Number of Poles: 1
Rated Current (In): 160 A
Rated Impulse Withstand Voltage (Uimp): 8 kV
Rated Insulation Voltage (Ui): 500 V
Rated Operational Voltage: 240 V AC, 125 V DC
Rated Service Short-Circuit Breaking Capacity (Ics): 18 kA at 220 V AC, 18 kA at 230 V AC, 16 kA at 380 V AC, 16 kA at 415 V AC, 10 kA at 440 V AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu): 2.5 kA at 220 V AC, 2.5 kA at 230 V AC, 16 kA at 380 V AC, 16 kA at 415 V AC, 10 kA at 440 V AC, 8 kA at 500 V AC, 25 kA at 125 V DC, 20 kA for 3 Poles in Series at 250 V DC
Rated Uninterrupted Current (Iu): 160 A
Power Loss at Rated Operating Conditions per Pole: 15 W
Release Type: TM
Durability and Standards:
Electrical Durability: 8000 cycles at 120 cycles per hour
Mechanical Durability: 25000 cycles at 240 cycles per hour
Standards: IEC 60947
Connection and Test:
Terminal Connection Type: Fixed Circuit-Breakers Front for Copper Cables
Test Voltage at Industrial Frequency for 1 Minute: 3000 V
Maximum Test Voltage (Utest): 3000 V
Version: F
RoHS Status:
Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-07-01
Certificates and Declarations:
Data Sheet Technical Information Document Number: 1SDC210004D0203
Declaration of Conformity – CE: 1SDL000165R0001
GL Certificate: 1SDL000163R0058
RoHS Information: 1SDL000200R0001
