Product Overview

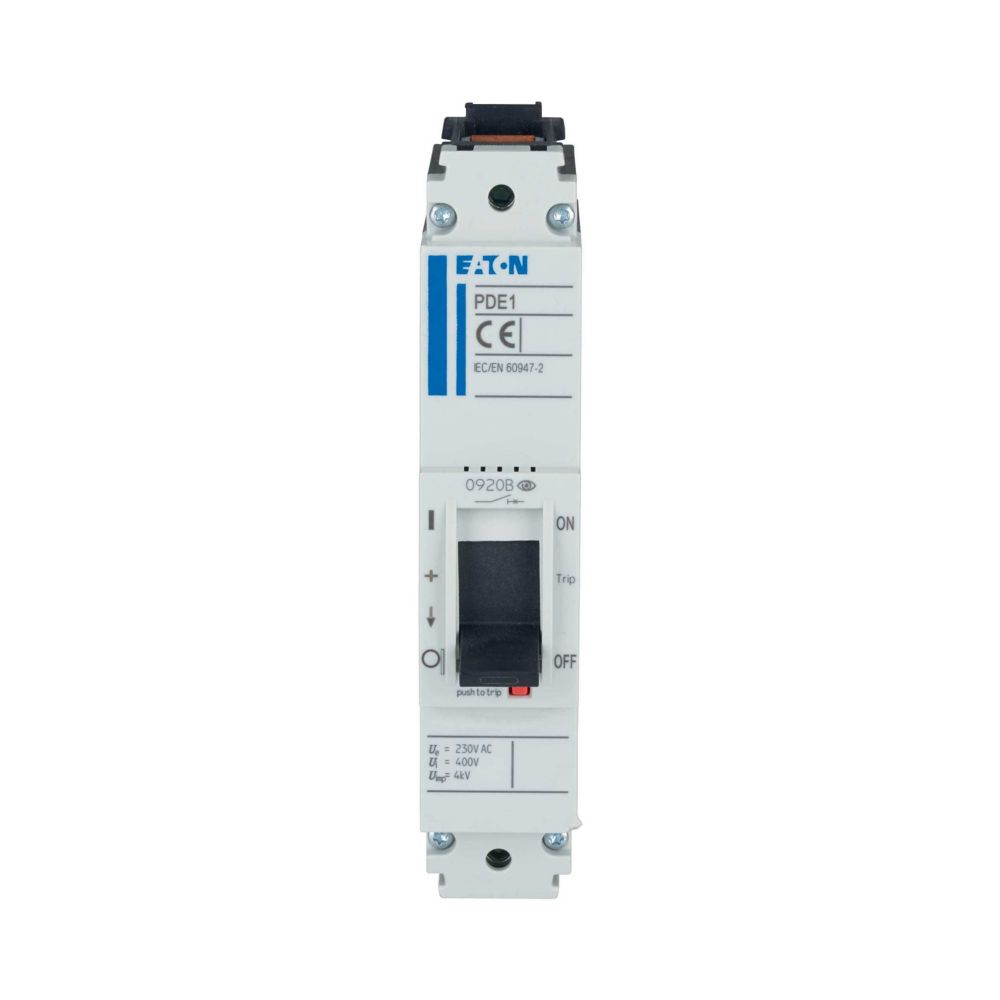

Product Name: Eaton Moeller series Power Defense molded case circuit-breaker
Catalog Number: PDE11F0063TFFJ
EAN: 9010238099340
Dimensions (HxWxD): 14.5 cm x 3.0 cm x 8.8 cm
Weight: 0.386 kg
Compliance: RoHS conform
Certifications: IEC IEC/EN 60947
Delivery program
Type: Circuit breaker
Circuit breaker frame type: PDE1
Number of poles: Single-pole
Amperage Rating: 63 A
Release system: Thermomagnetic release
Features: Protection unit
Special features: Fixed overload releases Ir
Technical Data – Electrical
Voltage rating: 230 V – 230 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts: 6000 V
Rated impulse withstand voltage (Uimp) at main contacts: 6000 V
Rated current (Iu): 63 A
Instantaneous current setting (Ii): min 63 A, max 630 A
Overload current setting (Ir): min 50.4 A, max 63 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz: 18 kA
Short-circuit total breaktime: < 10 ms
Electrical connection type of main circuit: Frame clamp
Isolation: 500 V AC (between auxiliary contacts and main contacts), 300 V AC (between the auxiliary contacts)
Number of operations per hour – max: 120
Handle type: Rocker lever
Utilization category: A
Overvoltage category: III
Pollution degree: 3
Direction of incoming supply: Vertical and 90° in all directions
Technical Data – Mechanical
Mounting Method: DIN rail (top hat rail) mounting optional, Fixed, Complete device in housing
Degree of protection: IP2X, IP20 (basic degree of protection, in the operating controls area)
Degree of protection (IP), front side: IP40 (with insulating surround), IP66 (with door coupling rotary handle)
Degree of protection (terminations): IP10 (tunnel terminal), IP00 (terminations, phase isolator and band terminal)
Shock resistance: 20 g (half-sinusoidal shock 20 ms)
Number of auxiliary contacts (change-over contacts): 0
Number of auxiliary contacts (normally closed contacts): 0
Number of auxiliary contacts (normally open contacts): 0
Position of connection for main current circuit: Front side
Climatic proofing: Damp heat, constant, to IEC 60068-2-78, Damp heat, cyclic, to IEC 60068-2-30
Special features: Fixed overload releases Ir
Lifespan, mechanical: 20000 operations
Technical Data – Mechanical – Terminals
Standard terminals: Box terminal
Design verification as per IEC/EN 61439 – technical data
Ambient operating temperature – min: -25 °C
Ambient operating temperature – max: 70 °C
Ambient storage temperature – min: -40 °C
Ambient storage temperature – max: 70 °C
Additional information
Functions: System and cable protection
Customs Tariff Code: 85362010
