Product Overview

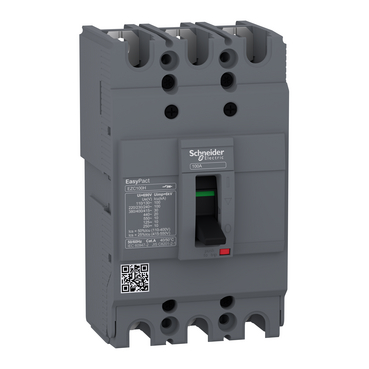

EasyPact EZC100H is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price.
The breaking capacity (Icu) is 30kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 60A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (7.5 cm x 13 cm x 6 cm) comes with a variety of optional functions and accessories.
EasyPact EZC100H is compliant with international standards (IEC 60947, UL 508) and marine certifications.
Specifications
Range of product: EasyPact
Product or component type: Circuit breaker
Device short name: Easypact EZC100H
Circuit breaker name: Easypact EZC100H
Device application: Distribution
Poles description: 3P
Protected poles description: 3t
Network type: AC and DC
Network frequency: 50/60 Hz
Rated current [In]: 60 A at 40 °C
Rated insulation voltage [Ui]: 690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage [Uimp]: 6 kV conforming to IEC 60947-2
Rated operational voltage [Ue]: 550 V AC 50/60 Hz and 250 V DC conforming to IEC 60947-2
Breaking capacity code: H
Breaking capacity: 10 kA Icu at 125 V DC 1P; 10 kA Icu at 250 V DC 2P; 10 kA Icu at 550 V AC 50/60 Hz; 100 kA Icu at 110-130 V AC 50/60 Hz; 100 kA Icu at 220-240 V AC 50/60 Hz; 20 kA Icu at 440 V AC 50/60 Hz; 30 kA Icu at 380 V AC 50/60 Hz; 30 kA Icu at 400-415 V AC 50/60 Hz, all conforming to IEC 60947-2
Rated service breaking capacity [Ics]: 15 kA at 380 V AC 50/60 Hz; 5 kA at 125 and 250 V DC; 50 kA at 110-130 and 220-240 V AC 50/60 Hz; 5 kA at 440 V AC; 2.5 kA at 550 V AC; 7.5 kA at 400/415 V AC 50/60 Hz, all conforming to IEC 60947-2
Suitability for isolation: Yes conforming to IEC 60947-2
Utilisation category: Category A
Trip unit name: TM-D
Trip unit technology: Thermal-magnetic
Trip unit rating: 60 A at 50 °C
Protection type: Short-circuit protection and Overload protection
Pollution degree: 3 conforming to IEC 60664-1 and IEC 947-1
Main
Control type: Toggle
Mounting mode: Fixed
Mounting support: Backplate
Upside connection: Front
Downside connection: Front
Mechanical durability: 13000 cycles
Connection pitch: 25 mm
Local signalling: Positive contact indication
Neutral protection setting: Without protection
Earth-leakage protection: Without
Height: 13 cm
Width: 7.5 cm
Depth: 6 cm
Complementary
Standards: GB/T 14048.2, EN/IEC 60947-2, EN/IEC 60947-1, JIS C8201-2-2
IP degree of protection: IP20 conforming to IEC 60529
IK degree of protection: IK07 conforming to IEC 62262
Ambient air temperature for operation: -25 to 70 °C
Ambient air temperature for storage: -35 to 85 °C
Environment
Package 1 height: 9.5 cm
Package 1 width: 8.5 cm
Package 1 length: 14 cm
Package 1 weight: 843 g
Package 2 height: 15 cm
Package 2 width: 30 cm
Package 2 length: 40 cm
Package 2 weight: 10.153 kg
Package 3 height: 80 cm
Package 3 width: 80 cm
Package 3 length: 120 cm
Package 3 weight: 175.184 kg
Warranty: 18 months
