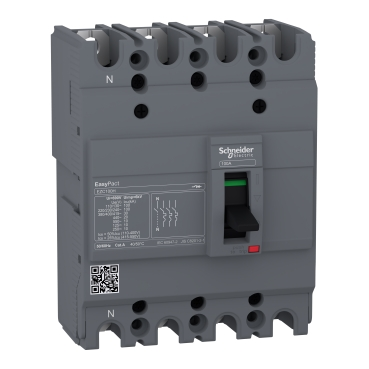

EZC100H4100 – Circuit breaker Easypact EZC100H – TMD – 100 A – 4 poles 3d
It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. It is compliant with international standards IEC 60947, EN 60947, CCC, CB.
Range of product: EasyPact EZC
Product or component type: Circuit breaker
Device short name: Easypact EZC100H
Device application: Distribution
Poles description: 4P
Protected poles description: 3t
Network type: DC and AC
Network frequency: 50/60 Hz
Rated current (In): 100 A at 40 °C
Rated insulation voltage (Ui): 690 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp): 6 kV
Rated operational voltage (Ue): 550 V AC 50/60 Hz, 250 V DC
Breaking capacity code: H
Breaking capacity: 10 kA Icu at 125 V DC 1P, 10 kA Icu at 250 V DC 2P, 10 kA Icu at 550 V AC 50/60 Hz, 100 kA Icu at 110 to 130 V AC 50/60 Hz, 20 kA Icu at 440 V AC 50/60 Hz, 50 kA Icu at 220 to 240 V AC 50/60 Hz, 30 kA Icu at 380 to 415 V AC 50/60 Hz
Rated service breaking capacity (Ics): 5 kA at 125 V DC, 5 kA at 250 V DC, 5 kA at 440 V AC, 2.5 kA at 550 V AC, 15 kA at 380 to 400 V AC, 25 kA at 220 to 240 V AC, 50 kA at 110 to 130 V AC, 7.5 kA at 415 V AC
Suitability for isolation: Yes
Utilisation category: Category A
Trip unit name: TM-D
Trip unit technology: Thermal-magnetic
Trip unit rating: 100 A at 50 °C
Protection type: Overload protection and Short-circuit protection
Pollution degree: 3
Control type: Toggle
Mounting mode: Fixed
Mounting support: Backplate
Upside connection: Front
Downside connection: Front
Mechanical durability: 13000 cycles
Connection pitch: 2.5 cm
Local signalling: Positive contact indication
Neutral protection setting: Without protection
Earth-leakage protection: Without
Dimensions (HxWxD): 13 x 10 x 6 cm
Standards: EN/IEC 60947-1, EN/IEC 60947-2, JIS C8201-2-2, GB/T 14048.2
IP degree of protection: IP20
IK degree of protection: IK07
Ambient air temperature for operation: -25 to 70 °C
Ambient air temperature for storage: -35 to 85 °C
Package 1 (PCE): 1 unit, dimensions 9.5 x 11 x 13.8 cm, weight 1.045 kg
Package 2 (S02): 9 units, dimensions 15 x 30 x 40 cm, weight 9.8 kg
Package 3 (P12): 288 units, dimensions 75 x 120 x 80 cm, weight 326 kg
Warranty: 18 months
Customs Tariff Code: 85043490
