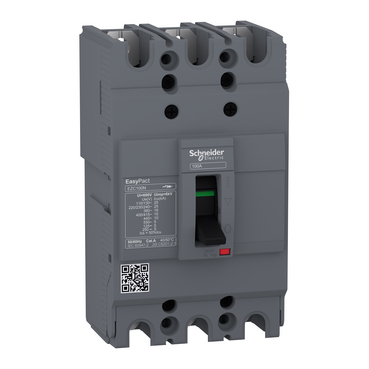

EZC100N3100 – circuit breaker Easypact EZC100N – TMD – 100 A – 3 poles 3d
Brand: Schneider Electric
EasyPact EZC100N is a 3 poles fixed circuit breaker designed for protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price. The breaking capacity (Icu) is 15kA rms at 415 V AC 50/60 Hz. The operational voltage is 550 V AC 50/60 Hz or 250 V DC. The rating of the thermal-magnetic trip unit is 100 A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (7.5 cm x 13 cm x 6 cm) comes with a variety of optional functions and accessories. Easypact EZC100N is compliant with international standards (IEC 60947, UL 508) and marine certifications.
Poles description: 3P
Trip unit rating: 100 A
Breaking capacity code: N
Breaking capacity: 10 kA Icu at 440 V AC 50/60 Hz; 15 kA Icu at 400 to 415 V AC 50/60 Hz; 18 kA Icu at 380 V AC 50/60 Hz; 25 kA Icu at 110 to 130 V AC 50/60 Hz; 25 kA Icu at 220 to 240 V AC 50/60 Hz; 5 kA Icu at 125 V DC 1P; 5 kA Icu at 250 V DC 2P; 5 kA Icu at 550 V AC 50/60 Hz
Service breaking capacity (Ics): 5 kA at 440 V AC 50/60 Hz; 9 kA at 380 V AC 50/60 Hz; 12.5 kA at 110/130 V AC 50/60 Hz; 12.5 kA at 220/230/240 V AC 50/60 Hz; 2.5 kA at 125 V DC; 2.5 kA at 250 V DC; 2.5 kA at 550 V AC 50/60 Hz; 7.5 kA at 400/415 V AC 50/60 Hz
Suitability for isolation: Yes
Utilisation category: Category A
Protection type: Short-circuit protection, Overload protection
Pollution degree: 3
Control type: Toggle
Mounting mode: Fixed on backplate
Connection pitch: 2.5 cm
Local signalling: Positive contact indication
Dimensions (H x W x D): 13 cm x 7.5 cm x 6 cm
Standards: EN/IEC 60947-1, GB/T 14048.2, EN/IEC 60947-2, JIS C8201-2-2
IP degree of protection: IP20
IK degree of protection: IK07
Operating ambient temperature: -25 to 70 °C
Storage ambient temperature: -35 to 85 °C
Warranty: 18 months
Customs Tariff Code: 85362010
