Product Name: EZC100N4080

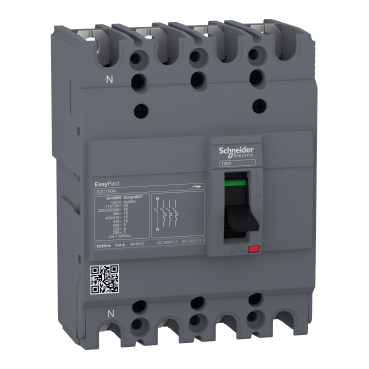

This is a 80A circuit breaker for EasyPact EZC100E. This product can work below rated operational voltage(Ue) 550 V AC at 50/60 Hz and 250 V DC. It is designed with 4 poles frame with detection on 3 poles, equipped with TM-D thermal-magnetic trip unit for protection. Compliant with IEC60947 standards and certified by CE and independent labs (KEMA, ASEFA, TUV). Certified for pollution degree 3 environment as defined by IEC60947 and tested for extreme atmospheric conditions. Can be mounted vertically or horizontally in a metal enclosure with padlocking to reduce safety risks. The series includes slots for indication or voltage release auxiliaries behind the front cover.
Application: Distribution
Poles Description: 4 poles (3 protected poles)
Network: DC and AC, 50/60 Hz
Rated Current In: 80 A at 40 °C
Rated Insulation Voltage Ui: 690 V AC 50/60 Hz
Rated Impulse Withstand Voltage Uimp: 6 kV
Rated Operational Voltage Ue: 550 V AC 50/60 Hz, 250 V DC
Breaking Capacity Code: N
Breaking Capacities Icu: 10 kA at 440 V AC, 25 kA at 110-130 V AC or 220-240 V AC, 5 kA at 125 V DC (1P), 5 kA at 250 V DC (2P), 5 kA at 550 V AC, 15 kA at 415 V AC, 18 kA at 380-400 V AC
Rated Service Breaking Capacity Ics: 5 kA at 440 V AC, 2.5 kA at 125 V DC, 2.5 kA at 250 V DC, 2.5 kA at 550 V AC, 12.5 kA at 220-240 V AC or 110-130 V AC, 9 kA at 380-400 V AC, 7.5 kA at 415 V AC
Suitability for Isolation: Yes
Utilisation Category: Category A
Trip Unit: TM-D Thermal-magnetic, rating 80 A at 50 °C
Protection: Short-circuit and Overload
Pollution Degree: 3
Control Type: Toggle
Mounting: Fixed on backplate
Connections: Front (upside and downside)
Mechanical Durability: 13000 cycles
Connection Pitch: 2.5 cm
Local Signalling: Positive contact indication
Neutral Protection Setting: Without protection
Earth Leakage Protection: Without
Dimensions (HxWxD): 13 cm height, 10 cm width, 6 cm depth
Ambient Air Temperature: Operation -25 to 70 °C, Storage -35 to 85 °C
Protection Ratings: IP20, IK07
Standards: EN/IEC 60947-1, GB/T 14048.2, JIS C8201-2-2, EN/IEC 60947-2
Packaging & Weight: Single unit package: 9 cm x 13.5 cm x 11 cm, weight 1.051 kg; Package of 9 units: 15 cm x 30 cm x 40 cm, weight 9.9 kg; Pallet of 288 units: 80 cm x 120 cm x 288 cm, weight 302.688 kg
Warranty: 18 months
Environmental: Carbon footprint 426 CO2 equivalent, packaging made with minimum 70% recycled cardboard, minimized use of plastic, RoHS compliant, SCIP number 2958c627-310e-4ae4-a905-31a369b1aaa8, ready for EU WEEE disposal regulations
