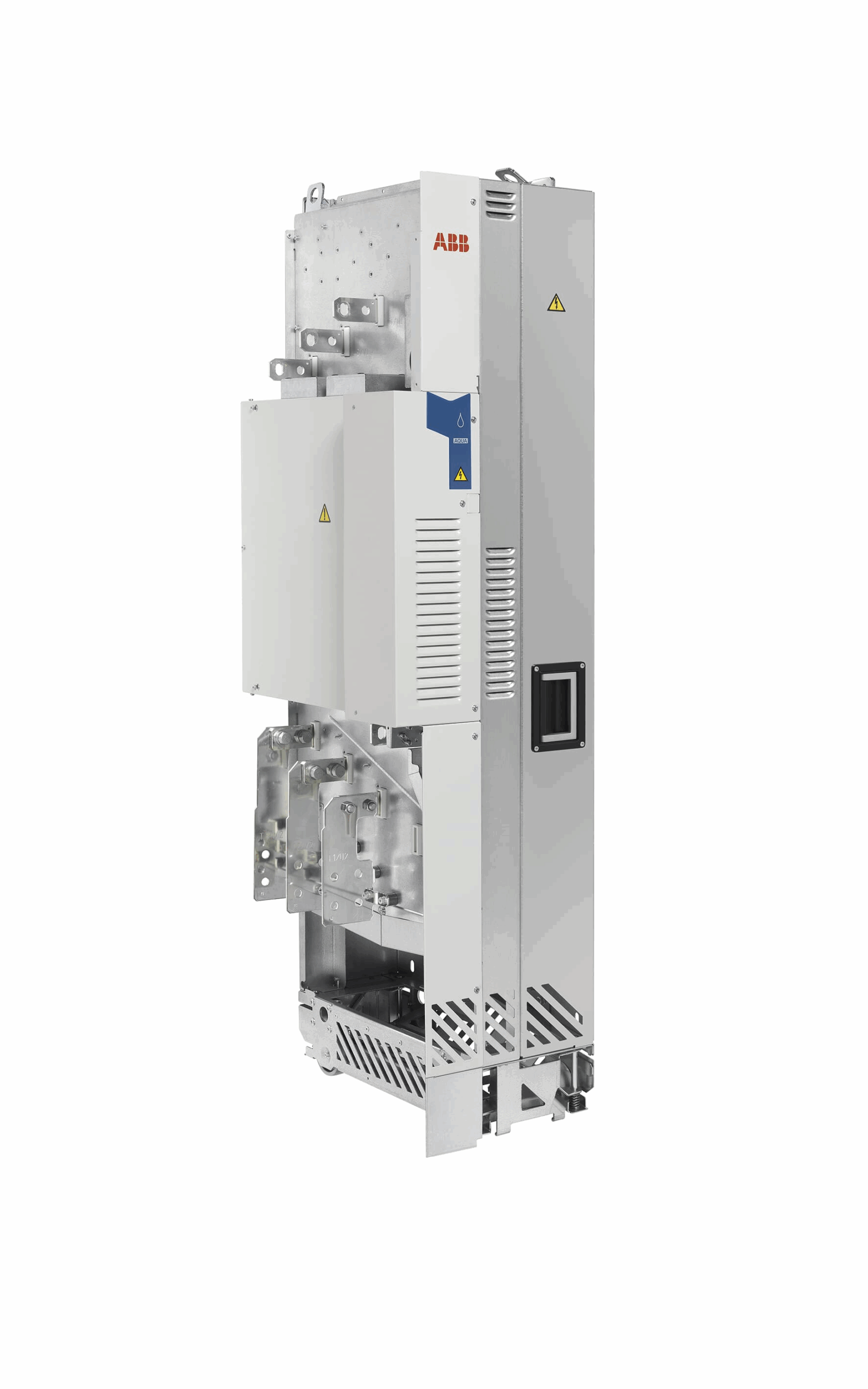

ACQ580-04-505A-4 LV AC drive module for water and wastewater
The ACQ580-04 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact drive module has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth® control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.
Product ID: 3AXD50000049028
EAN: 6438177702320
Customs Tariff Code: 85044086
HS Code: 850440 — ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Output Power (Normal Use): 250 kW
Output Power (Light-Overload Use): 250 kW
Output Power (Heavy-Duty Use): 200 kW
Output Current (Normal Use): 505 A
Output Current (Light-Overload Use): 485 A
Output Current (Heavy-Duty Use): 361 A
Output Power UL Heavy-Duty Use: 300 Hp
Output Power UL Light-Overload Use: 400 Hp
Output Power UL Normal Use: 200 Hp
Output Current UL Normal Use: 505 A
Output Current UL Light-Overload Use: 483 A
Output Current UL Heavy-Duty Use: 361 A
Degree of Protection: IP00
Enclosure Type NEMA: Open Type
Mounting Type: Module
Frame Size: R10
Power Factor: 0.98
Sound Level: 72 dB(A)
Operating Humidity (RHamb): 5 … 95 %
Altitude: 1000 m
Number of Phases: 3-phase
Input Voltage Range: 380 … 480 V
Frequency Range: 47.5 … 63 Hz
Communication Protocol: CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP
Number of Hardware Interfaces: Industrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1
Includes: Control unit, PC connection
Analog Inputs: 2
Analog Outputs: 2
Number of Digital In/Outputs: 6 / 3
Product Net Weight: 161 kg
Product Net Dimensions (D x H x W): 52.9 cm x 146.2 cm x 35 cm
Package Level 1 Dimensions (D x H x W): 205 cm x 50 cm x 65 cm
Package Level 1 Units: 1 case
Temperature Rating: Minimum -15 °C, Maximum 40 °C
Efficiency Level: IE2
Power Consumption: 6492 W
Standby Loss: 423 W
Apparent Power Output: 350 kV·A
Multiple Battery Information: Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Declaration of Conformity – CE: 3AXD10001818627
REACH Declaration: 9AKK107992A7060 (contains substances > 0.1 mass percentage)
RoHS Declaration: 3AXD10001818627 (Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019)
Global Warming Potential GWP Total (kilograms of CO2 equivalent): Distribution (Module A4) 20, End of Life (Modules C1-C4) 198, Installation (Module A5) 108, Manufacturing (Modules A1-A3) 1799, Use (Modules B1-B7) 66450, Total 68575
WEEE Category: 4. Large Equipment (Any External Dimension More Than 50 cm)
ETIM 9: EC001857 – Frequency converter =< 1 kV
UNSPSC: 39122001
