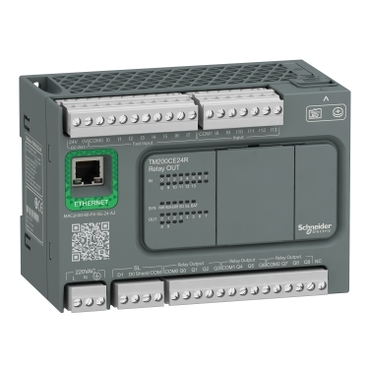

TM200CE24R – controller M200 24 IO relay+Ethernet
Description: This product is part of the Easy Modicon M200 range, offering logic controllers for up to 168 I/O and 2 axis motion control. It provides 4 fast inputs, 4 high speed inputs, 6 regular inputs, and 10 relay outputs (normally opened relay output). It operates with 24 V DC input voltage and outputs of 24 V DC and 220 V AC with 2 A output current. The controller is easy to maintain and update using its micro SD memory card. It includes mini B USB 2.0, serial links (RS485, RS232/RS485), Ethernet Modbus TCP/IP connections, has 512 bytes internal flash and supports up to 32 GB micro SD card capacity. IP20 rated product with dimensions 13 cm (W) x 7 cm (D) x 9 cm (H) and weight 0.413 kg. Suitable for textile, machine tool, packaging, material handling, pumping, hoisting, electronic assembly machines. Certified CE, CSA, IACS E10, RCM, CULus and compliant with EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. Mounts on DIN rail. Entry-level PLC designed for emerging markets providing best performance/price ratio for small automation and motion applications.
Main Specifications:
Discrete I/O Number: 24
Discrete Inputs: 4 fast, 4 high speed, 6 regular
Discrete Outputs: 10 relay normally open
Input Voltage: 24 V DC
Output Voltage: 24 V DC, 220 V AC
Output Current: 2 A
Power Consumption: 52 to 64 VA at 100-240 V AC with max I/O
Supply Voltage Range: 85 to 264 V AC 50/60 Hz
Memory: 512 byte internal flash, 32 GB micro SD card option
Battery: BR2032 Li-CFx, 5 years life
Backup Time: 3 years at 25 °C
Regulation Loops: up to 14 simultaneous PID
Control Signals: Quadrature, Pulse/direction, Single phase, CW/CCW at 100 kHz
Connectivity: USB 2.0 Mini B, Serial links (RS485, RS232/RS485), Ethernet RJ45 10/100BASE-T
Local Signalling LEDs: Power, Run, Error, SD card access, Battery, Serial Link, I/O status, Communication
Mounting: TH35-15 rail or TH35-7.5 plate with IEC 60715 compliance
IP Rating: IP20 with protective cover
Weight: 0.413 kg
Dimensions: 13 cm wide, 7 cm deep, 9 cm high
Environmental and Compliance:
Carbon footprint lifecycle: 4601
Packaging made with minimum 70% recycled cardboard
EU RoHS and REACh compliant
No take-back program applicable
Standards: IEC 61010-2-201, IEC 61131-2
Electromagnetic Compatibility: complies with IEC 61000 series tests
Operating Conditions: 0 to 55 °C, 10 to 95% RH no condensation
Altitude: operation up to 2000 m, storage up to 3000 m
Vibration and shock tested per specifications
Customs Tariff Code: 85371098
