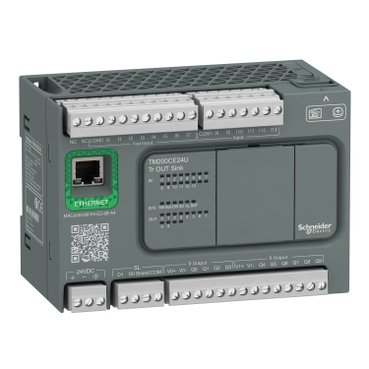

Name: controller M200 24 IO transistor SINK+ Ethernet
SKU: TM200CE24U
Availability: InStock

الوصف

TM200CE24U – controller M200 24 IO transistor SINK+ Ethernet

This product belongs to the Easy Modicon M200 range, offering logic controllers for up to 168 I/O and 2 axis motion control. It features 6 regular inputs, 4 fast inputs, 4 high speed inputs, 8 transistor outputs, and 2 fast outputs. The rated supply/output voltage is 24 V DC, with an output current of 0.5 A and a power consumption of 10 W at 24 V DC. Maintenance and updates are easy via the micro SD memory card.

Integrated connections include mini B USB 2.0, serial link 1 and RS485, serial link 2 and RS232/RS485, Ethernet Modbus TCP/IP, and another serial link 2 with RS485. Memory capacity comprises 512 bytes internal flash and 32 GB micro SD card.

The product has an IP20 protection rating. Dimensions are Width 17.5 cm x Depth 7 cm x Height 9 cm. The net weight is 0.504 kg. It is designed for textile, machine tool, packaging, material handling, pumping, hoisting, and electronic assembly machines.

Certifications include CE, CSA, IACS E10, RCM, and CULus. It complies with EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. Mounting is supported on top hat type TH35-15 rails or TH35-7.5 plates/panels with fixing kits, conforming to IEC 60715.

It supports up to 4 I/O expansion modules with up to 64 relay outputs or 138 transistor outputs. Input voltage is 24 V DC with 7 mA input current and sink/source logic type conforming to IEC 61131-2. Outputs are transistor type with 24 V DC voltage and 0.5 A max current with negative logic (sink).

Response times for various inputs and outputs range from 5 µs (high speed input) to 1 ms (outputs). Protection features include overload and short-circuit protection at 3.8 A with automatic reset in 1 second. Maximum cable distances vary by cable type and signal: unshielded cables up to 50 m for input and 150 m for output; shielded cables up to 10 m for fast and high speed inputs.

Communication protocols include USB port (SoMachine-Network), Modbus master/slave RTU/ASCII, and Modbus TCP/IP over Ethernet.

Environmental ratings and compliance include IP20, multiple IEC standards for electromagnetic compatibility, vibration, shock resistance, and operational temperature range from 0 to 55 °C (storage -25 to 70 °C). Humidity tolerance is 10 to 95% without condensation.

Packaging is made with a minimum 70% recycled cardboard, free of single-use plastic. Battery type is BR2032 Li-CFx with 5-year life and 3 years backup at 25 °C.

Customs Tariff Code: 85371098

Post Views: 2٬369

معلومات إضافية

الوزن	0.391 كيلوجرام
الأبعاد	7 × 13 × 9 سنتيميتر
Product ID	TM200CE24U
Range Name	Modicon Easy M200
Range Short Description	Logic controllers – Up to 168 I/O, 2 axis motion control
Discrete IO Number	24
Discrete Input Number	4 fast input, 4 high speed input, 6 regular input
Discrete Output Number	2 fast output, 8 transistor output
Discrete Input Voltage	24
Discrete Input Voltage Type	DC
Discrete Input Current mA	7
Discrete Input Logic	Sink or source (positive/negative) type 1 conforming to IEC 61131-2
Discrete Output Voltage	24 V DC
Discrete Output Current A	0.5
Discrete Output Type	Transistor
Discrete Output Logic	Negative logic (sink)
Power Consumption W	10
Max Number of IO Expansion Module	4 with 64 discrete output(s) for relay output, 4 with 138 discrete output(s) for transistor output
Supply Voltage Limits V	20.4…28.8
Inrush Current A	35
Voltage State 1 Guaranteed V	>= 15 for input
Voltage State 0 Guaranteed V	<= 5 for input
Input Impedance kOhm	3.3
Response Time	1 ms turn-on Q0…Q9 for output; 1 ms turn-off Q0…Q9 for output; 5 µs turn-off I0, I1, I6, I7 for high speed input; 5 µs turn-on I0, I1, I6, I7 for high speed input; 100 µs turn-off I2…I5 for fast input; 35 µs turn-on I2…I5 for fast input; 100 µs turn-off I8…I13 for regular input; 35 µs turn-on I8…I13 for regular input
Configurable Filtering Time ms	0, 3, 12 for input
Maximum Current Per Output Common A	2 at COM 0, 3 at COM 1
Output Frequency kHz	100
Maximum Leakage Current mA	0.1
Maximum Voltage Drop V	<1
Maximum Tungsten Load W	<12 for output and fast output
Protection Type	Overload and short-circuit protection at 3.8 A
Reset Time s	1
Memory Capacity Bytes	512
Data Storage	32 GB micro SD card (optional)
Battery Type	BR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life 5 years
Backup Time Years	3
Execution Time 1KInstruction ms	0.3
Execution Time Per Instruction us	0.2
Execution Time Event Task us	60
Clock Drift s per Month	<= 90 at 25 °C
Regulation Loop	Adjustable PID regulator up to 14 simultaneous loops
Positioning Functions	PWM/PLS 2 channels at 100 kHz
Control Signal Type	Quadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode); Pulse/direction at 100 kHz for fast input (HSC mode); Single phase at 100 kHz for fast input (HSC mode); CW/CCW at 100 kHz for fast input (HSC mode)
Counting Input Number	4 fast input (HSC mode) at 100 kHz 32 bits
Integrated Connection Type	USB port with mini B USB 2.0 connector; Non isolated serial link serial 1 with terminal block connector and RS485 interface; Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface; Ethernet Modbus TCP/IP Ethernet with RJ45 connector and 1 Ethernet port 10/100BASE-T interface; Isolated serial link serial 2 with terminal block connector and RS485 interface
Transmission Rate	1.2…115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485; 1.2…115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232; 12 Mbit/s for USB; 10/100 Mbit/s for bus length of 100 m for Ethernet Modbus TCP/IP
Communication Port Protocol	USB port: USB – SoMachine-Network; Non isolated serial link: Modbus master/slave – RTU/ASCII or SoMachine-Network; Ethernet Modbus TCP/IP: Modbus TCP/IP client/server
Local Signalling	1 LED green for PWR; 1 LED green for RUN; 1 LED red for module error (ERR); 1 LED green for SD card access (SD); 1 LED red for BAT; 1 LED green for SL1; 1 LED per channel green for I/O state; 2 LEDs green for communication (LK/ACT 10/100)
Electrical Connection	Mini B USB 2.0 connector for programming terminal; RJ45 connector for Ethernet network; removable screw terminal blocks for inputs, outputs, 3 terminals for 24 V DC power supply, 4 terminals for serial link1
Maximum Cable Distance m	Unshielded cable: <50 for input, <150 for output; Shielded cable: <10 for fast input and high speed input
Insulation	Non-insulated between inputs; Between input and internal logic at 500 V AC; Between fast input and internal logic at 500 V AC; Between input groups at 500 V AC; Between output and internal logic at 500 V AC; Between output groups at 500 V AC; Between supply and internal logic at 500 V DC
Marking	CE
Mounting Support	Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715
IP Degree of Protection	IP20 with protective cover in place
Product Certifications	CE
Standards	IEC 61131-2; IEC 61010-2-201
Electromagnetic Compatibility	Electrostatic discharge immunity test – test level: 8 kV air discharge IEC 61000-4-2; 6 kV contact discharge IEC 61000-4-2; Susceptibility to electromagnetic fields – 10 V/m (80 MHz to 3 GHz) IEC 61000-4-3; Magnetic field at power frequency – 30 A/m IEC 61000-4-8; Electrical fast transient/burst immunity – 2 kV power lines and relay output IEC 61000-4-4; 1 kV I/O and serial link IEC 61000-4-4; 1.2/50 µs shock waves immunity – various levels IEC 61000-4-5; Conducted RF disturbances 10 V (0.15 to 80 MHz) IEC 61000-4-6; Conducted emission IEC 55011; Radiated emission IEC 55011; Electrical fast transient/burst immunity – 1 kV Ethernet line IEC 61000-4-4
Shock Resistance g	15 for 11 ms, 30 for 6 ms
Immunity to Microbreaks ms	2
Vibration Resistance	3.5 mm at 5 to 8.4 Hz on symmetrical rail; 1 g at 8.4 to 150 Hz on symmetrical rail; 3.5 mm at 5 to 8.7 Hz on panel mounting; 2 g at 8.7 to 150 Hz on panel mounting
Relative Humidity Percent	10 to 95 without condensation in operation and storage
Ambient Air Temperature for Operation C	0 to 55 horizontal installation
Ambient Air Temperature for Storage C	-25 to 70
Pollution Degree	<= 2
Operating Altitude m	0 to 2000
Storage Altitude m	0 to 3000
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height cm	13.6
Package 1 Width cm	9
Package 1 Length cm	13.8
Package 1 Weight g	612
Unit Type of Package 2	S03
Number of Units in Package 2	12
Package 2 Height cm	30
Package 2 Width cm	30
Package 2 Length cm	40
Package 2 Weight g	7944
Unit Type of Package 3	P12
Number of Units in Package 3	288
Package 3 Height cm	80
Package 3 Width cm	120
Package 3 Length cm	105
Package 3 Weight g	199656
Customs Tariff Code	85371098
